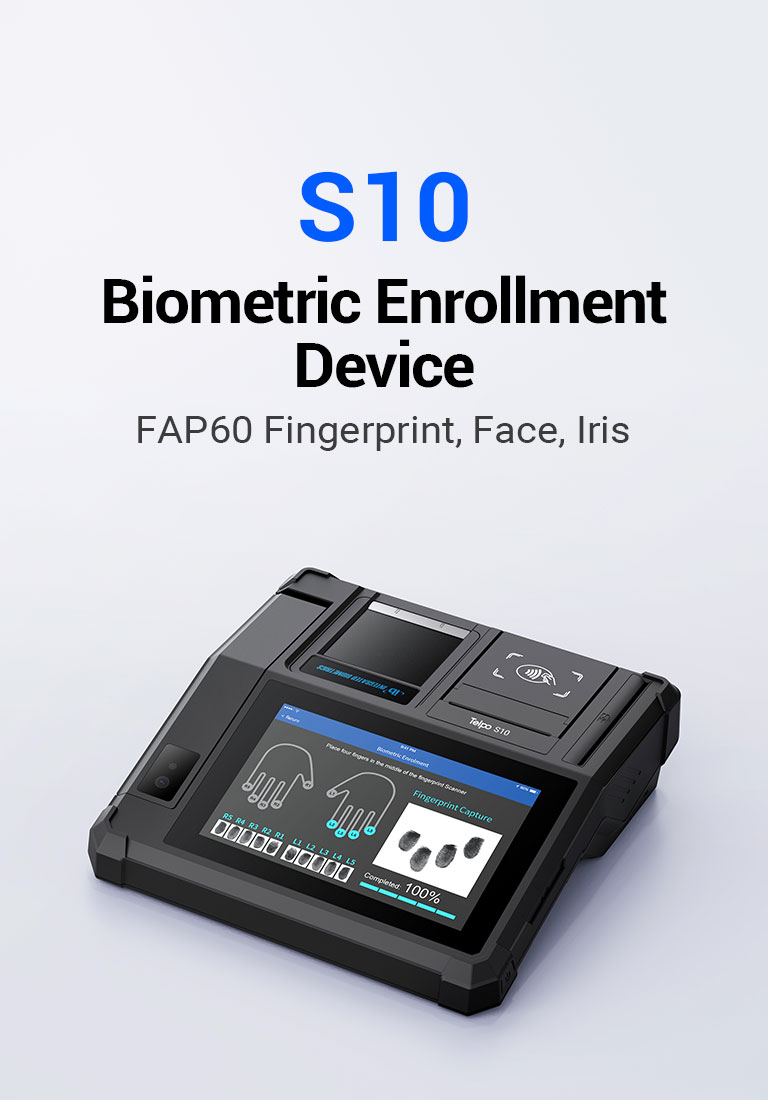

SIM Card NIN Registration FAP60 Scanner Terminal

S10

SIM Card NIN Registration FAP60 Scanner Terminal

Designed for SIM card NIN registration and citizen identification project needs, Telpo S10 is an all-in-one biometric scanner terminal that integrated multimodal biometric features, such as IB's FAP60 10-finger(4-4-2) scanner with FBI certificate, powerful 13MP+5MP camera for iris and face recognition, NFC & IC ID card reader, MRZ scanner. Most importantly, CE, Google Mobile Service, NCC certification is supported.  It's suitable for national population registration, citizen identification, SIM card registration, elections, immigration, and border control.


SIM Card NIN Registration FAP60 Scanner Terminal


About Telpo S10 SIM card NIN registration Terminal:

1. A 10-inch Large Display: multi-point touch screen, with 1280x800 resolution

2. Excellent performance and large storage space:

    Octa-core, 2.0GHz,

    Android 10 or above;

    Standard 2GB DDR+16GB eMMC, Max to 4GB DDR+64GB eMMC

    Up to 128GB Micro SD card

3. FAP60 Fingerprint Scanner with FBI: The FBI Appendix F & FAP 60 (4-4-2) fingerprint scanner from Integrated Biometrics (IB) KOJAK PL, equipped with IB's patented Light-emitting Sensor technology, provides low power consumption of 10 fingerprint registering and identification.

4. Powerful 13MP+5MP Camera: The 13MP Primary Arm Camera can rotate 180 degrees to take photos of people at different heights. The 5MP front camera with dual flashes can be used for scanning codes and taking pictures.

5. NFC reader: ISO14443 Type A/B compliant operating frequency 13.56MHz.

6. IC card reader: support ISO7816, e-Passport and e-ID document reading and ID card reading are available.

7. Printer with 80mm width: Identity registration information is printed and verified immediately

8. Dual SIM and SAM Slot: Dual SIM provides stable communication for S10, and dual SAM cards are optional to meet the safe upload, update, and start-up use of the card reader.

9. Big Battery: The 7.4V/10Ah removable battery ensures that a full day of citizen registration and verification, 10AH Long-lasting Performance battery indoors or outdoors, is carried out in an orderly manner.

10. Touch screen for signature

11. Zink printer as optional

12. Iris Scanner as optional

13. MRZ scanner as optional

14. Certification: NIMC, NCC, GMS, CE


Biometric fingerprint enrollment workstation with printer

SIM Card NIN Registration FAP60 Scanner TerminalSIM Card NIN Registration FAP60 Scanner Terminal

Biometric fingerprint enrollment device with printer

SIM Card NIN Registration FAP60 Scanner Terminal

SIM Card NIN Registration FAP60 Scanner Terminal


Biometric fingerprint enrollment workstation with printer


SIM Card NIN Registration FAP60 Scanner Terminal


Applications of Telpo S10 terminal

Biometric SIM card registration terminal is widely used in Civil Identification, Sim Card NIN Registration, Voter Registration, National Population Registration, Law Enforcement, Criminal Blackground Screening, Financial services, etc.

Biometric SIM Registration FAP60 Scanner Terminal with Printer



Specification


PERFORMANCE CHARACTERISTICS
CPUOcta-core,   2.0GHz
OSAndroid   10 or above
Internal   Memory2GB + 16GB / 2GB + 32GB (Optional) / 4GB + 64GB (Optional)
ExpansionSupport   up to 128GB Micro SD card

PHYSICAL CHARACTERISTICS
Dimensions(mm)350(L)*348(W)*102(H)
WeightApprox 3.3kg
Display &   Touch10-inch,   resolution 1280x800, support multi-touch
Battery7.4V/10000 mAh, Removable battery
Expansion Slot1 x   Micro SD Card / 2 x Micro SIM Card / 2 x SAM Card (Optional)
Interfaces1 x   DC Charge / 1 x Micro USB / 1 x 3.5mm Audio Jack / 2 x USB Host / 1 x RJ45
AudioDigital Audio Speaker
Keypad1 Power Key
LED Status   IndicatorsNetwork / Power / Battery
Power Supply12V, Support external solar panel charging

USER ENVIRONMENT
Operating   Temperature-10°C   to 50°C
Storage   Temperature-20°C   to 60°C
Humidity5%RH   - 95%RH, Non-condensing
WIRELESS COMMUNICATIONS
WLANIEEE   802.11 a/b/g/n/ac
WWANLTE-FDD/LTE-TDD/WCDMA/GSM
Bluetooth5.0   BLE
GNSSGPS /   A-GPS, GLONASS, BeiDou

DATA CAPTURE
Front Camera   (Optional)5MP   Camera with Autofocus and LED Flash
Primary Arm   Camera13MP   Camera with Autofocus and LED Flash
Iris   (Optional)Support
Contactless   Card Reader (Optional)13.56MHz   NFC, ISO14443 Type A/B
Smart Card   Reader (Optional)ISO7816
Secure Element   (Optional)2 SAM Slots, ISO7816
MRZ Reader (Optional)Font   TypeOCR B
MRZ Lines1   line: IDL, CAN, etc
    2 lines: ID2 cards, ePP
    3 lines: eID
Thermal   Printer

Paper width 80mm, Φ80mm;

Zink Printer(Optional)

Fingerprint   ScannerTen-finger   (4-4-2) Biometric Scanner using LES (Light-emitting Sensor) Technology
FBI Appendix F & FAP 60
Sensing area: 81.28 mm x 76.30 mm
Resolution: 500 PPI

REGULATORY
Certification (Optional)CE, NCC
