Handheld Biometric Terminal

TPS350 Features

Wireless biometric device TPS350 is very convenient for mobile fingerprint collection and card reader.

🔸4-inch display makes for easy portability

🔸An optical fingerprint scanner ensures fast identification speed, and meets STQC certification, Aadhaar certification, etc

🔸Support NFC/IC card for various verification scenes

🔸Embedded 5MP rear camera reliable to take a photo, barcode software decoding

🔸Silicon rubber case + 1.2m fall prevention


Function:

  • Android-01.png
    Android
  • Fingerprint-01.png
    Fingerprint
  • 4-inch Screen.png
    4-inch
  • NFC-01.png
    NFC
  • Smartcard-01.png
    Smartcard
  • QR-code-01.png
    QRcode
  • Wi-Fi-01.png
    Wi-Fi
  • WCDMA-01.png
    WCDMA
  • SAM-01.png
    SAM
  • Bluetooth-01.png
    BT
Inquiry Now

Safe, stable and smooth operation

Android 7.1 is convenient for secondary development and kernel customization
Quad-core 1.1GHz CPU and 1GB+8GB
Android 7.1 biometric handheld device tps350

Excellent fingerprint recognition performance

Large acquisition area and fast recognition speed.
· Quad-core 1.1GHz CPU and 1GB+8GB
Biometric fingerprint recognition handheld device tps350
NFC / IC card biometric handheld device tps350

Dual SIM card slot optional

Support WCDMA, GSM, Wi-Fi, Bluetooth, suitable for any network environment
Dual sim card biometric handheld device tps350
4-inch HD touch screen handheld biometric device tps350

Standard protective sleeve

Adapt to all kinds of harsh environment, meet the 1.2m drop
1.2m drop resistant biometric handheld device tps350
Applications of Android biometric handheld device tps350

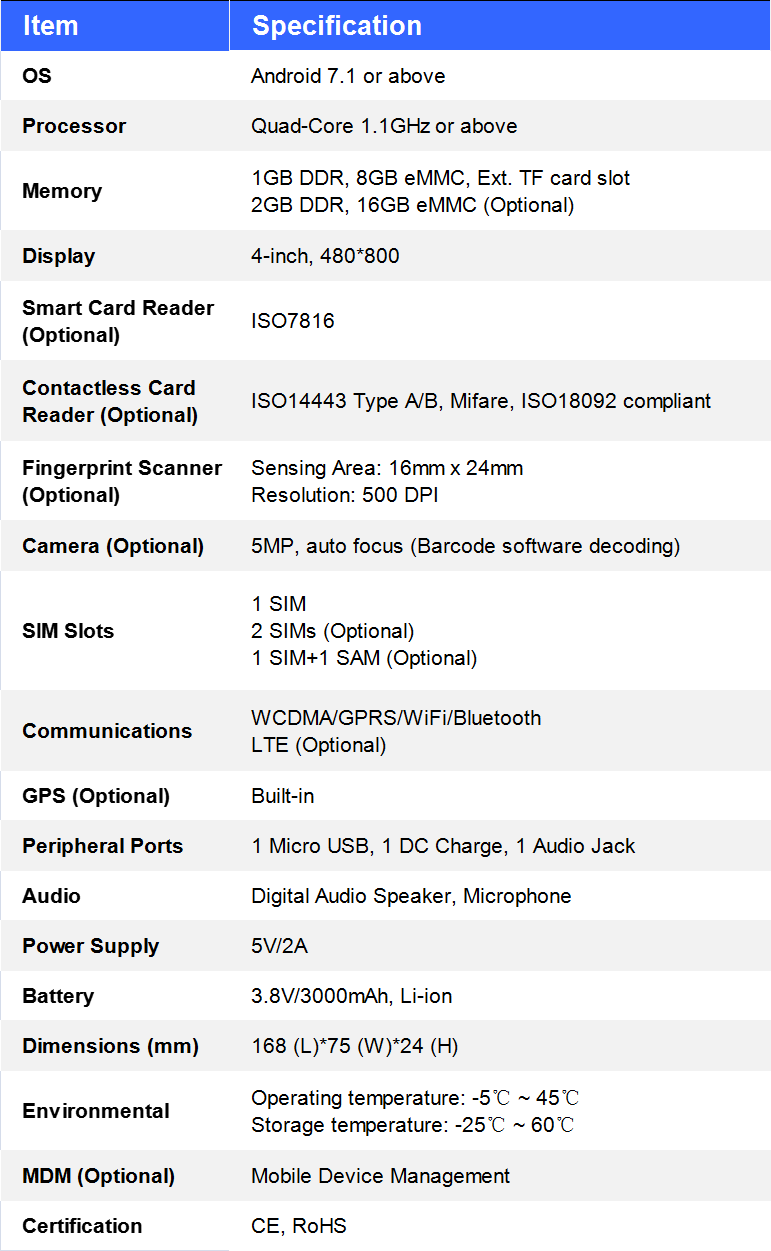

Technical Specifications

Item

Specification

Item

Specification

OS

Android 7.1 or above

GPS (Optional)

Built-in

Processor

Quad-Core 1.1GHz or above

Peripheral Ports

1 Micro USB, 1 DC Charge, 1 Audio Jack

Memory

1GB DDR, 8GB eMMC, Ext. TF card slot
2GB DDR, 16GB eMMC (Optional)

Audio

Digital Audio Speaker, Microphone

Display

4-inch, 480*800

Power Supply

5V/2A

Smart Card Reader (Optional)

ISO7816

Battery

3.8V/3000mAh, Li-ion

Contactless Card Reader (Optional)

ISO14443 Type A/B, Mifare, ISO18092 compliant

Dimensions (mm)

168 (L)*75 (W)*24 (H)

Fingerprint Scanner (Optional)

Sensing Area: 16mm x 24mm
Resolution: 500 DPI

Operating temperature

-5 ~ 45

Camera (Optional)

5MP, auto focus (Barcode software decoding)

Storage temperature

-25℃ ~ 60℃

SIM Slots

1 SIM
2 SIMs (Optional)
1 SIM+1 SAM (Optional)

MDM (Optional)

Mobile Device Management

Communications

WCDMA/GPRS/WiFi/Bluetooth
LTE (Optional)

Certification

CE, RoHS


Download

Telpo-TPS350-Specification.pdf
