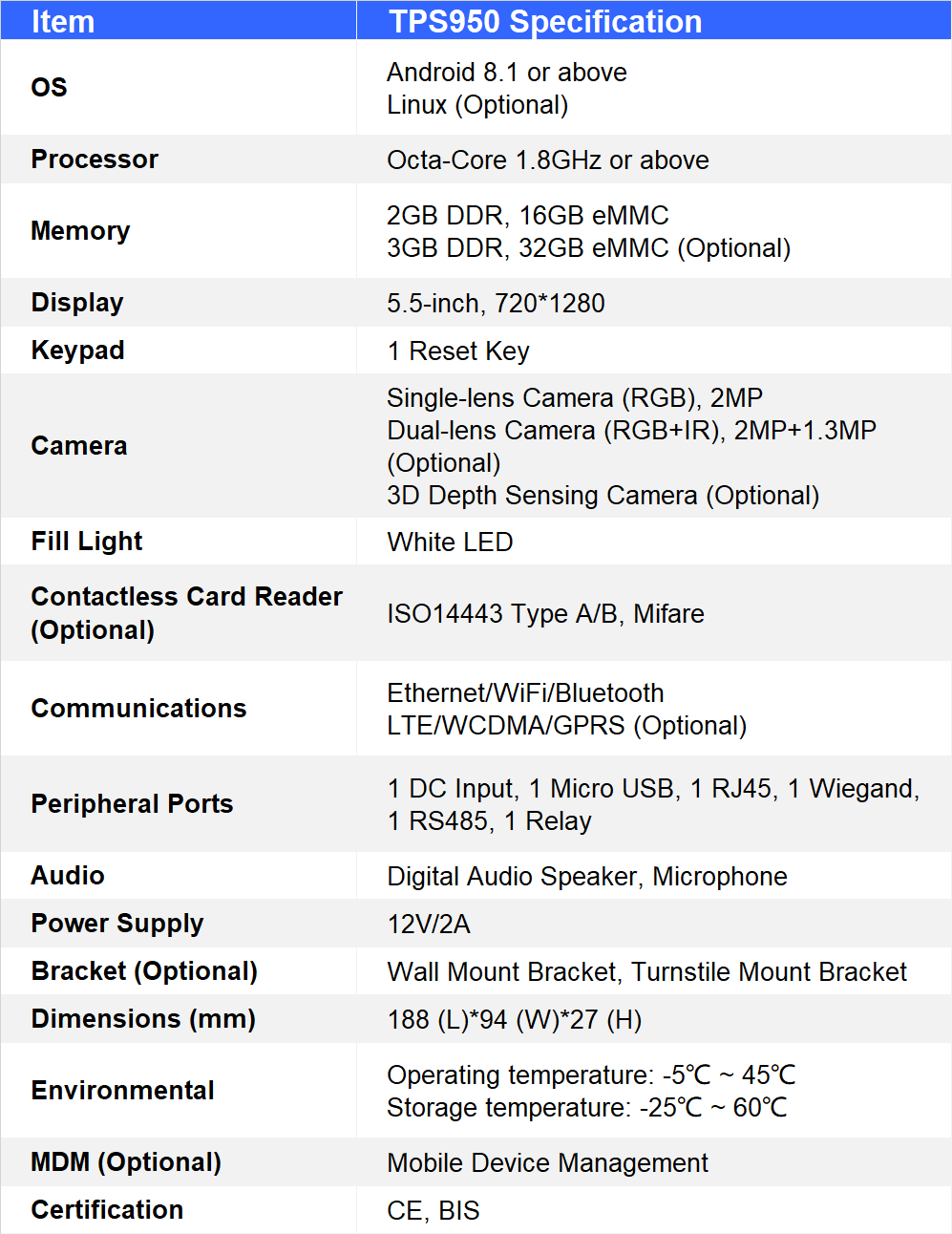

TPS950

Item

Specification

Item

Specification

OS

Android 8.1 or above
Linux (Optional)

Peripheral Ports

1 DC Input, 1 Micro USB, 1 RJ45, 1 Wiegand, 1 RS485, 1 Relay

Processor

Octa-Core 1.8GHz or above

Audio

Digital Audio Speaker, Microphone

Memory

2GB DDR, 16GB eMMC
3GB DDR, 32GB eMMC (Optional)

Power Supply

12V/2A

Display

5.5-inch, 720*1280

Bracket (Optional)

Wall Mount Bracket, Turnstile Mount Bracket

Keypad

1 Reset Key

Dimensions (mm)

188 (L)*94 (W)*27 (H)

Camera

Single-lens Camera (RGB), 2MP
Dual-lens Camera (RGB+IR), 2MP+1.3MP (Optional)
3D Depth Sensing Camera (Optional)

Operating temperature

-5℃ ~ 45℃

Fill Light

White LED

Storage temperature

-25℃ ~ 60℃

Contactless Card Reader (Optional)

ISO14443 Type A/B, Mifare

MDM (Optional)

Mobile Device Management

Communications

Ethernet/WiFi/Bluetooth
LTE/WCDMA/GPRS (Optional)

Certification

CE, BIS
