Access Control with Temperature Measurement

F7T

Access Control with Temperature Measurement

Telpo F7T is an access control terminal integrated with high accuracy temperature measurement. It can quickly measure skin-surface temperature and notify the user about abnormal readings through the three-color indicator lights(Green/Red/White). This product is perfect for many applications, including office buildings, public transportation hubs, border controls, education centers, and many other scenarios.


Infrared Thermometer Access Control

Android Access Control Thremometer with Mask Detectiont


Android Face Recognition infrared thermometer Access control System


Face Verification Access Control with Temperature Measurement


1. Face Verification + Infrared Thermometer

Integrated binocular live face recognition(LFR), mask detection with temperature measurement, F7T allows visitors to pass in a safer way, reducing the rate of cross-infection.


Accuracy: ±0.3℃(±0.6°F)

Thermometry distance: 0.5-0.7m

Recognition rate: >99.5%

Black Body Calibration


2. Voice broadcast and high-temperature warning

Once the passers without wearing a mask, F7T can do a face mask alert, forced mask-wearing alert;

High-temperature alarm for the fever in the initial temperature check;

Three-color indicator lights(Green/Red/White)


Video Intercom Access Control with Temperature Measurement


3. Video Intercom to Make Building Access Control More Intelligent

F7T fully support HD resolution video intercom in addition to the audio intercom, which further helps improve security access control as the visitor's face can be seen before letting anyone into the building.


Android Face Recognition infrared thermometer Access control System


Multi-language Access Control with Temperature Measurement


4.Support Multiple Language Display and Backstage Management System

This temperature measuring device is already compatible with 26 languages, including English, Russian, French, Italian, Portuguese, Spanish, Japanese, Korean, etc.


Tamper proof security Access Control with Temperature Measurement


5. Physical Anti-tamper Protection Design

When the bracket is separated from the host, the anti-tamper mechanism will be triggered which makes the machine unable to work normally and the data cannot be extracted to ensure data security.

Note: Support wall mount bracket and turnstile mount bracket.


Android Face Recognition infrared thermometer Access control System

Biometric Access Control with Temperature Measurement


6. Multiple Authentication Methods

For the highest level of security, F7T allows for two biometric modes of authentication, facial recognition and fingerprint, and furthermore can provide up to 3-factor authentication using a face, finger, and NFC access card.


Cloud System, Access Control with Management with Temperature Measurement

7. Cloud Data Management

Conduct data statistics and management from attendance, access control, personnel information and health status, etc.

Android Face Recognition infrared thermometer Access control System


Wiegand Relay Port  of Access Control with Temperature Measurement

8. Rich Ports

External ports enable the terminal to connect other peripherals and expand its application, including RS232, Wiegand, and POE patch cord.

It can be connected to the doorbell, router, tripod, turnstile gate, door lock, and other related security equipment.


9. A Wide Choice of Brackets

Wall mount Stand, Floor Stand, Desktop Stand


10.Wide Network Connectivity

 The device supports 4G, Bluetooth, dual-band WIFI, Ethernet, etc. and ensure data interconnection.




Application of Thermometer Access Control System

Access Control with Temperature Measurement


Android Face Recognition infrared thermometer Access control System

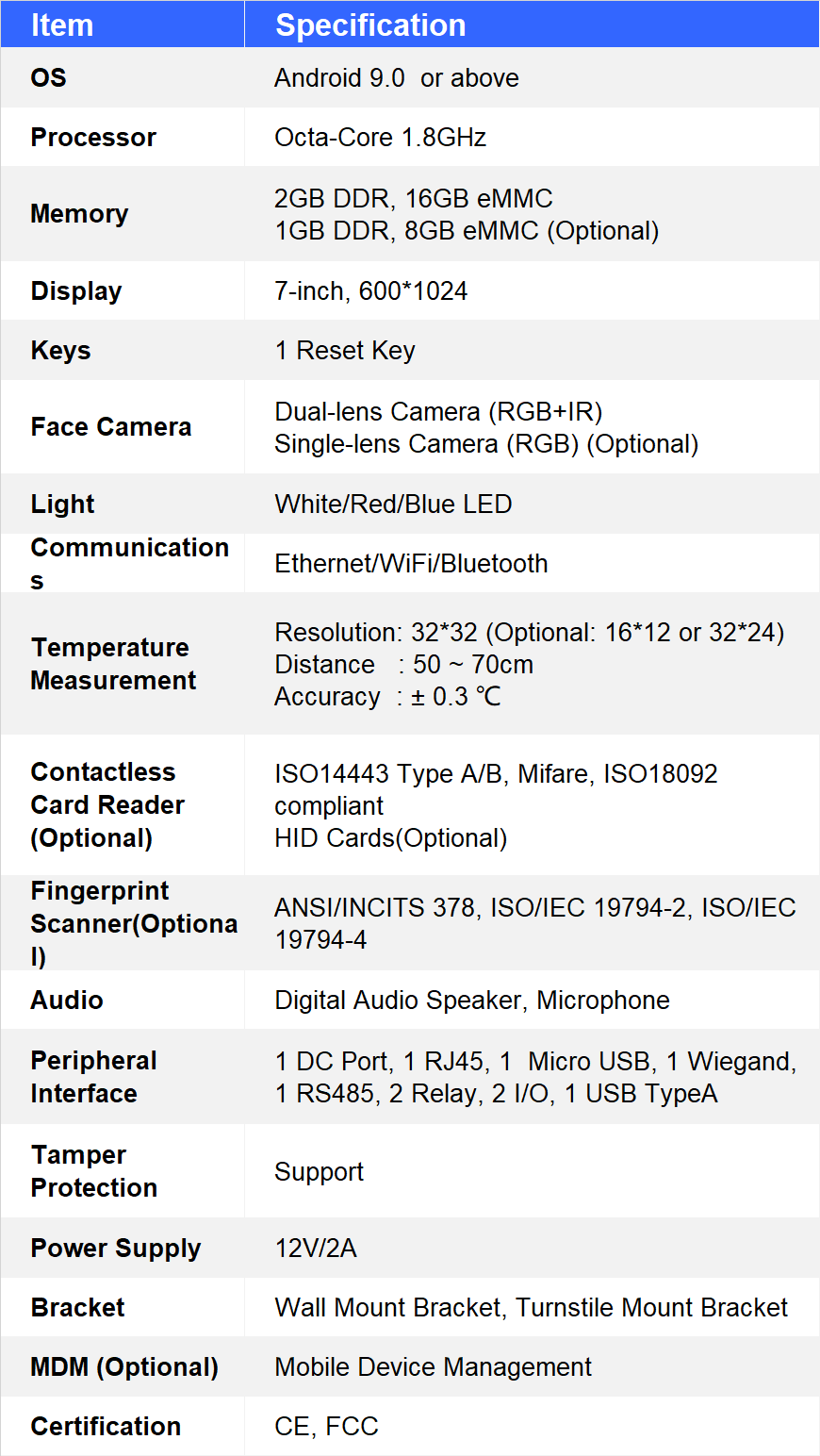

Specification


Access Control with Temperature Measurement

OSAndroid 9.0  or above
ProcessorOcta-Core   1.8GHz
Memory2GB   DDR, 16GB eMMC
    1GB DDR, 8GB eMMC (Optional)
Display7-inch,   600*1024
Keys1 Reset Key
Face CameraDual-lens   Camera (RGB+IR)
    Single-lens Camera (RGB) (Optional)
LightWhite/Red/Green LED
CommunicationsEthernet/WiFi/Bluetooth
    LTE (Optional)
Temperature MeasurementResolution:   16*12 (Optional: 32*32 or 32*24)
    Distance   : 50 ~ 70cm
    Accuracy  : ± 0.3 ℃
Contactless Card Reader (Optional)ISO14443   Type A/B, Mifare, ISO18092 compliant
Fingerprint Scanner(Optional)ANSI/INCITS 378, ISO/IEC 19794-2,   ISO/IEC 19794-4
AudioDigital Audio Speaker, Microphone
Peripheral Interface1 DC Port, 1 RJ45, 1  Micro USB, 1 Wiegand,   1 RS485, 2 Relay, 2 I/O
Tamper ProtectionSupport
Power Supply12V/2A
BracketWall Mount Bracket, Turnstile Mount Bracket
MDM (Optional)Mobile Device Management
CertificationCE,   FCC
