Network Bullet Camera

Fixed Focus Network Camera

V60 Features

Telpo V60 is a high-performance fixed focus bullet camera. On the basis of image capture and video monitoring, maximum 22 faces can be remotely tracked simultaneously with 1080 high-definition. In virtue of WDR 120dB, 3D DNR and ICR infrared filter automatic day-night conversion and so on technologies, V60 can take clearly monitoring video or photos even in a backlight environment. The POE power supply, IP66 waterproof& dustproof rating, GPS, three different lens versions optional, and a host of user-friendly details make it a solid choice at indoor and outdoor scenes.

Function:

H.264
1080P FHD
IR Vision
120dB WDR
Monitor
3D DNR
Face
PoE
GPS

Inquiry Now

Network camera with AI vision processor RV1109 Linux system

ONVIF protocol Network Camera with AI Face Detection and Motion Detection

1080p full image 30fps network camera V60 telpo IR night vision security video camera for night 120DB wdr ip network camera outdoor IP66 Rated Protection Network camera for rain, snow, high temperature

1080p Full HD Image

Using 2MP pixels Sony 1/3" CMOS image sensor, max output Full HD 1080@30fps real-time image.

Smart Video Enhancement

Rendering a high-quality video under various lighting conditions

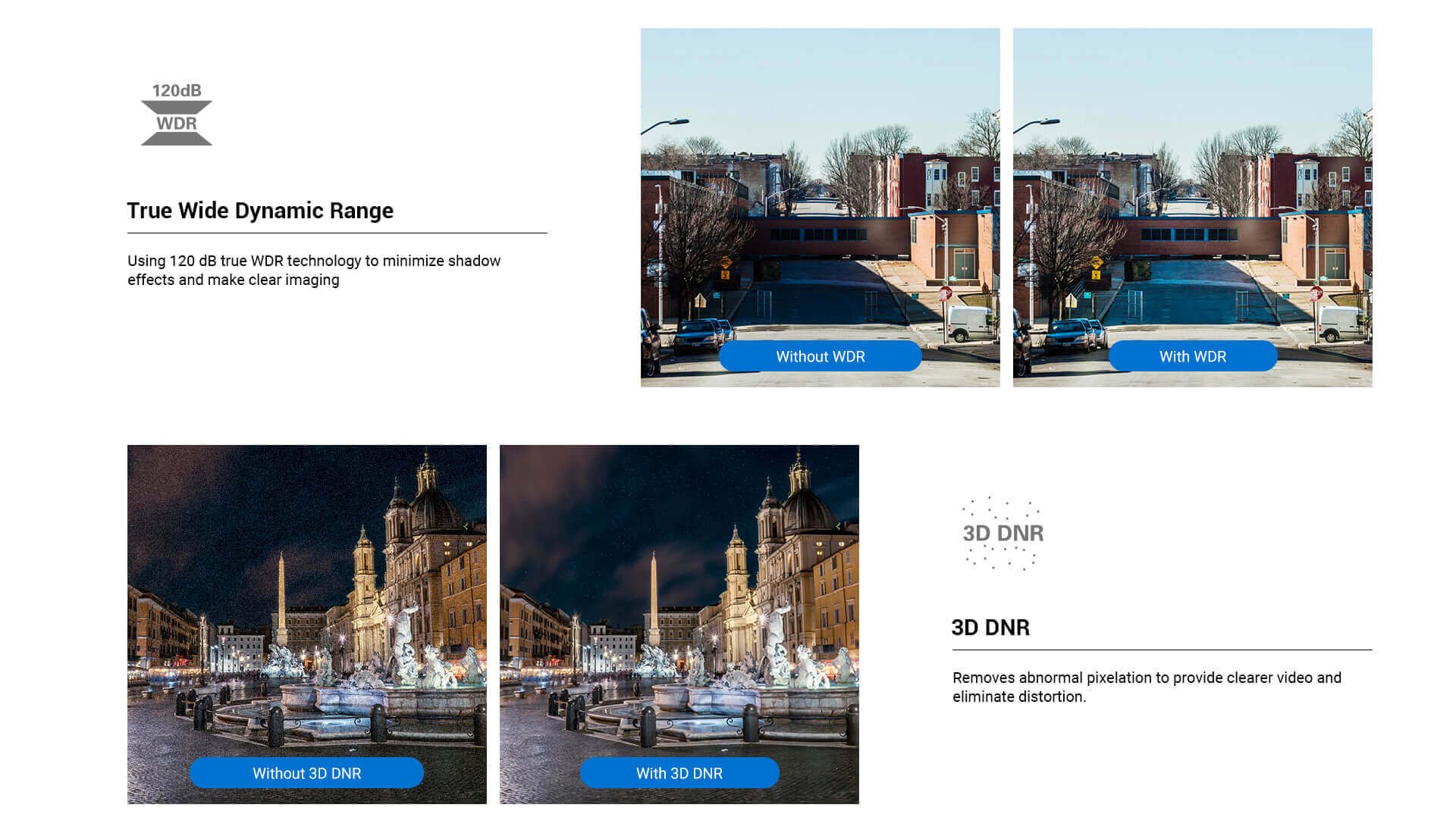

Utilizing a 2MP camera, maximum WDR 120dB, 3DDNR, minimum illumination 0.001Lux, ICR infrared filter automatic day-night conversion, V60 can minimize light brightness difference, clearly take monitoring video or photos even in backlight environment, as so to achieve all-weather monitoring.

With the help of multi-stage noise reductions, 3F HDR, Smart AE intelligent automatic exposure, AWB white balance, and distortion correction technology, machine function is greatly optimized.

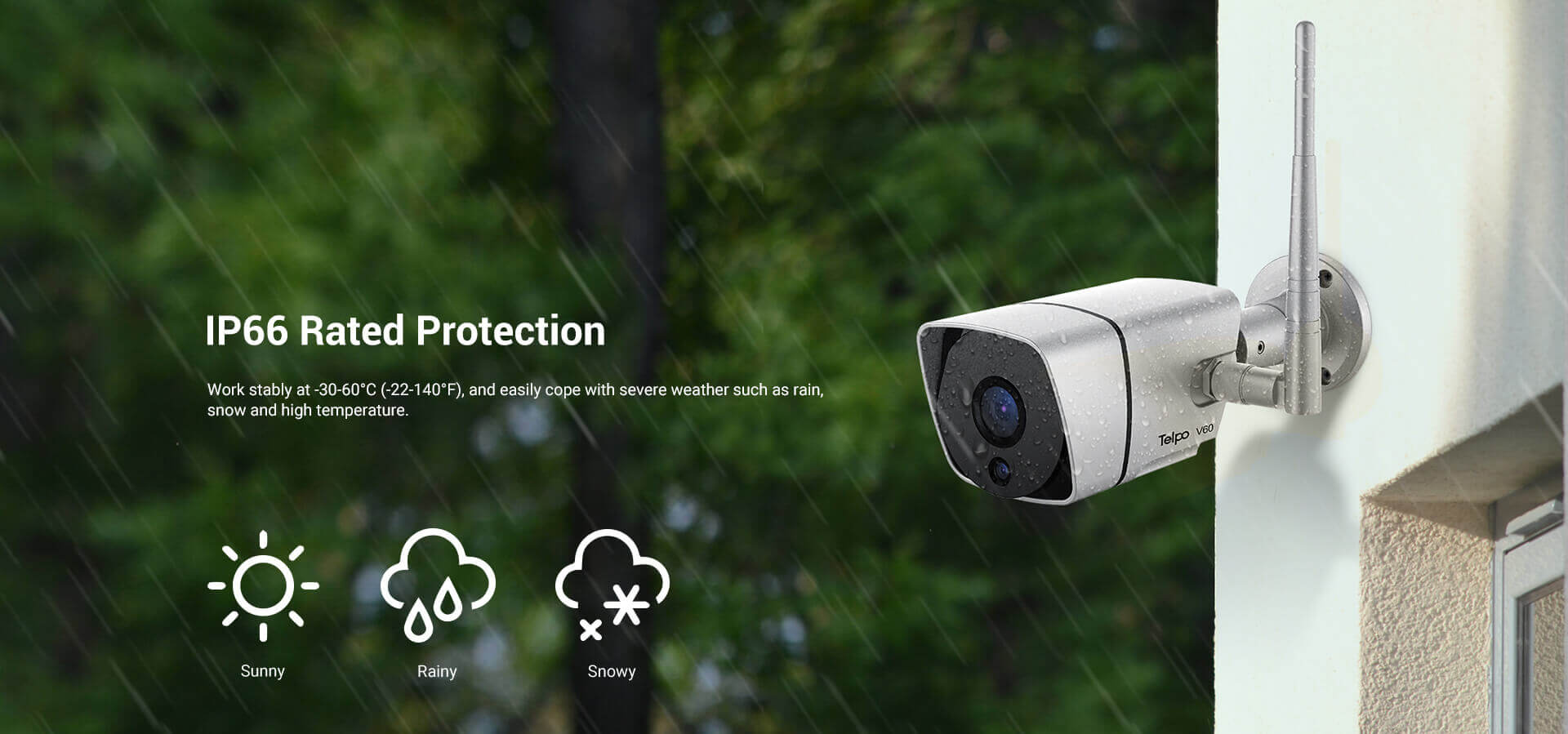

Work stably at -30-60°C (-22-140°F), and easily cope with severe weather such as rain, snow, and high temperature.

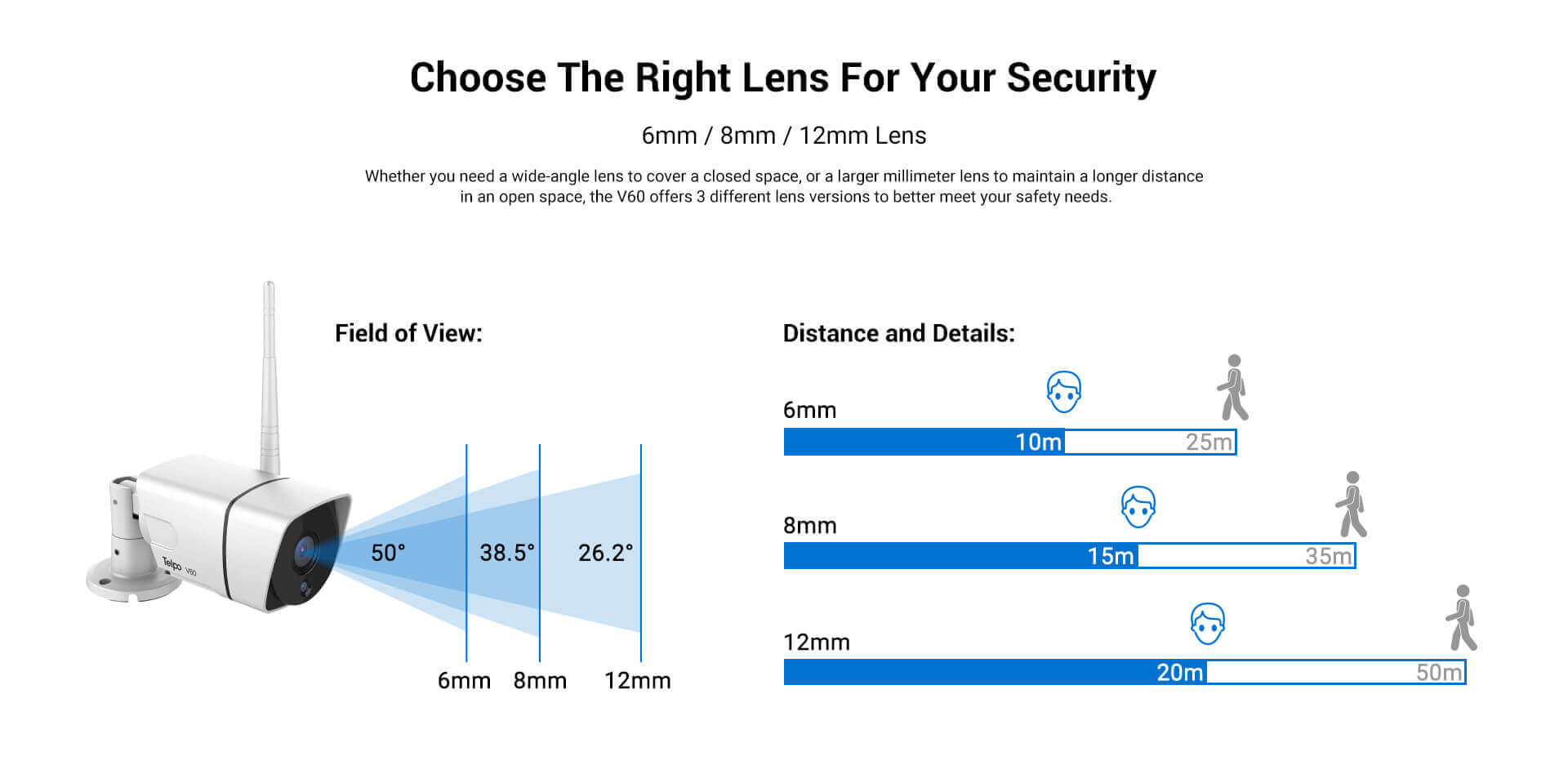

Choose the Right Lens for your Security

Designed to meet safety demand, V60 comes with 3 different lens versions (6/8/12mm). Generally speaking, the larger the focal length, the smaller the field angle and longer monitoring distance.

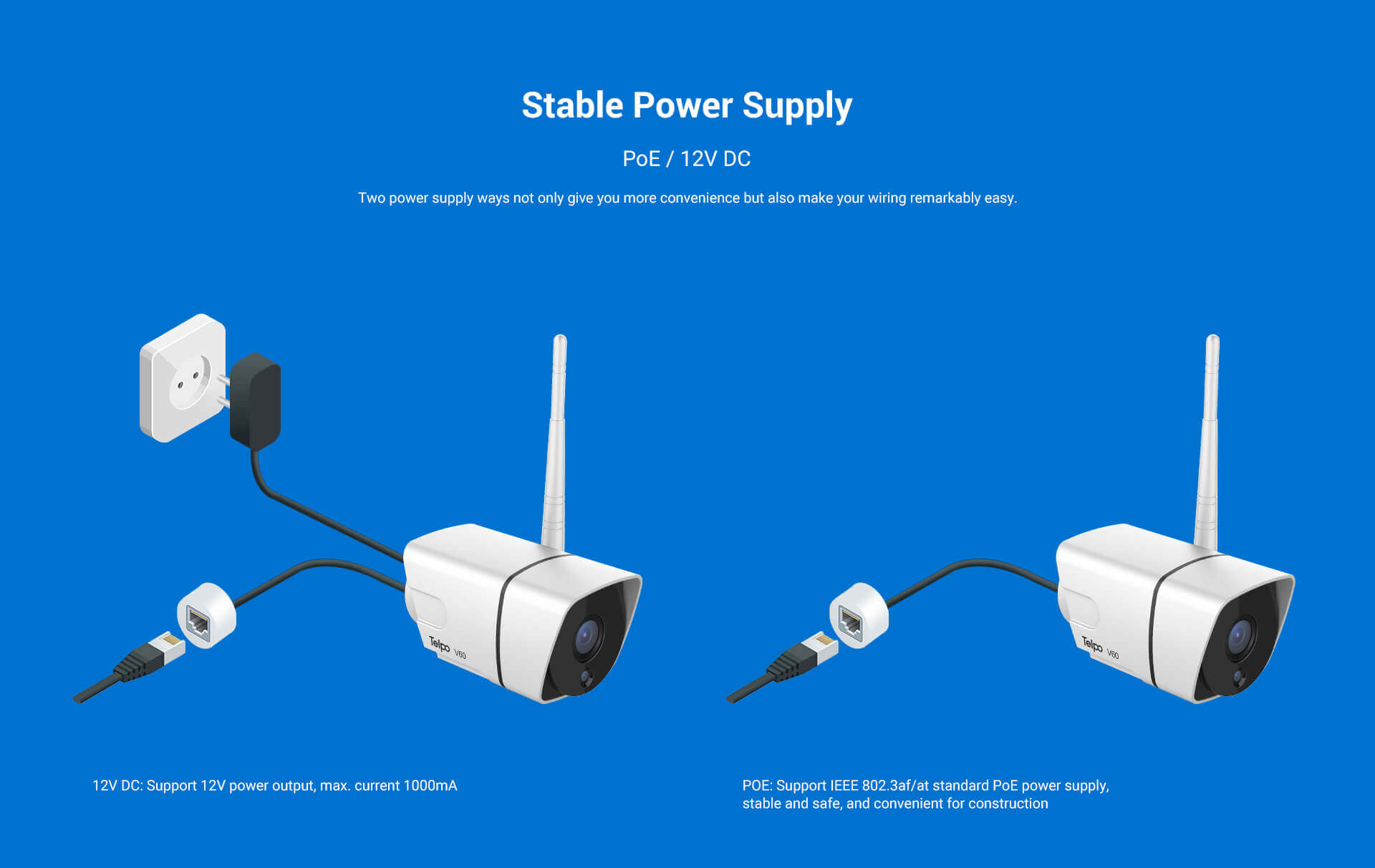

Stable power supply

Support POE (Power Over Ethernet), one network cable can supply power and video signal transmission, without complex power wiring.

POE: Support IEEE 802.3af/at standard PoE power supply, stable and safe, and convenient for construction

12V DC (Optional): Support 12V power output, max. current 1000mA

Applications

With IP66 waterproof and dustproof, V60 has access to various shooting needs indoor and outdoor. It is suitable to be used in offices, villas, parking lots, banks, shops, restaurants, hotels, schools, hospitals, and other scenes.

#AI face detection #day-night #monitoring #IP66 rated #POE+DC Supply #TelpoV60

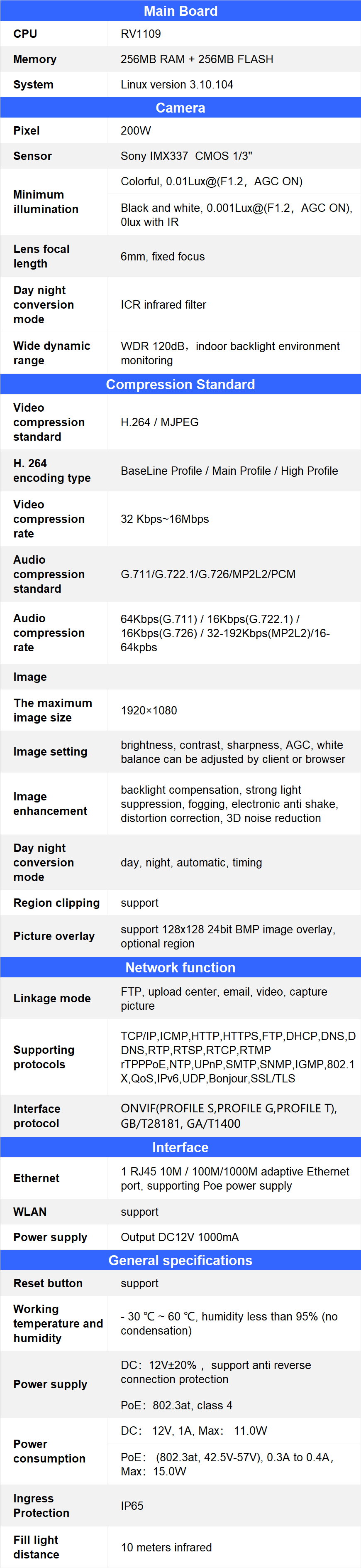

Technical Specifications

Main Board		Image
CPU	RV1109	The maximum image size	1920×1080
Memory	256MB RAM + 256MB FLASH	Image setting	brightness, contrast, sharpness, AGC, white balance can be adjusted by client or browser
System	Linux version 3.10.104	Image enhancement	backlight compensation, strong light suppression, fogging, electronic anti shake, distortion correction, 3D noise reduction
Camera		Day night conversion mode	day, night, automatic, timing
Pixel	200W	Region clipping	support
Sensor	Sony IMX337 CMOS 1/3"	Picture overlay	support 128x128 24bit BMP image overlay, optional region
Minimum illumination	Colorful, 0.01Lux@(F1.2，AGC ON)	General specifications
Minimum illumination	Black and white, 0.001Lux@(F1.2，AGC ON), 0lux with IR	Reset button	support
Lens focal length	6mm, fixed focus	Working temperature and humidity	- 30 ℃ ~ 60 ℃, humidity less than 95% (no condensation)
Day night conversion mode	ICR infrared filter	Power supply	DC：12V±20% ，support anti reverse connection protection
Wide dynamic range	WDR 120dB，indoor backlight environment monitoring	Power supply	PoE：802.3at, class 4
Compression Standard		Power consumption	DC： 12V, 1A, Max： 11.0W
Video compression standard	H.264 / MJPEG	Power consumption	PoE： (802.3at, 42.5V-57V), 0.3A to 0.4A，Max：15.0W
H. 264 encoding type	BaseLine Profile / Main Profile / High Profile	Ingress Protection	IP65
Video compression rate	32 Kbps~16Mbps	Fill light distance	10 meters infrared
Audio compression standard	G.711/G.722.1/G.726/MP2L2/PCM	Interface
Audio compression rate	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)/16-64kpbs	Ethernet	1 RJ45 10M / 100M/1000M adaptive Ethernet port, supporting Poe power supply
Network function		WLAN	support
Linkage mode	FTP, upload center, email, video, capture picture	Power supply	Output DC12V 1000mA
Supporting protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,RTMP rTPPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,UDP,Bonjour,SSL/TLS
Interface protocol	ONVIF(PROFILE S,PROFILE G,PROFILE T), GB/T28181, GA/T1400
