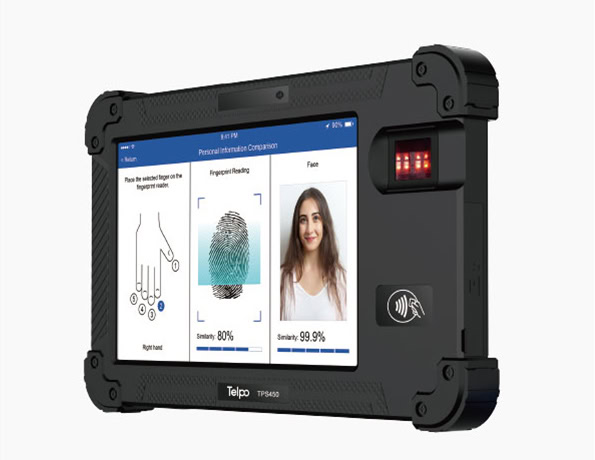

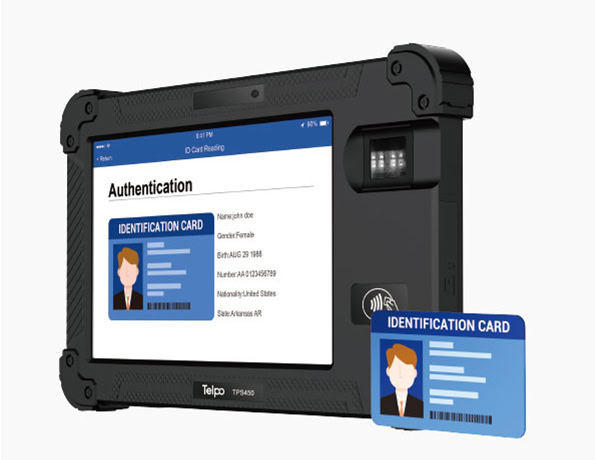

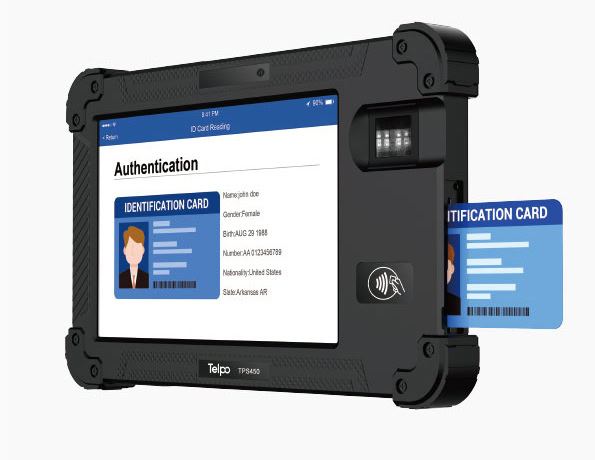

TPS450
Portable terminal for biometric identification
collection and verification
Biometric Tablet
Technical Specifications
OS
Telpo OS
(Based on Android)
Processor
Quad-Core
Memory
4GB RAM + 64GB ROM, Ext. TF card slot
2GB RAM + 16GB ROM (Optional)
Sensor
Accelerometer, Ambient light
Display
8", 1280*800
Fingerprint Scanner
FBI PIV / FBI Mobile ID FAP20
Sensing Area: 15.24mm x 20.32mm
Resolution: 500 DPI
Smart Card Reader
ISO7816
Contactless Card Reader
ISO14443 Type A/B, Mifare
Camera
Rear: 13M Pixel, auto focus (Barcode software decoding)
Front: 5M Pixel, fixed-focus (Optional)
Iris Scanner (Optional)
Support
Secure Element
1 SAM Slots, ISO7816
GPS
GPS / A-GPS, GLONASS, BeiDou
Communications
4G/3G/2G/Wi-Fi/Bluetooth
Peripheral Ports
1 Micro USB, 1 DC Charge
Power Supply
9V/2.5A
Battery
3.8V/9000mAh, Li-ion
Weight
approx. 850g
Environmental
Operating Temperature: -5℃ ~ 45℃
Storage Temperature: -25℃ ~ 60℃
Dimensions (mm)
262 (L)*160 (W)*30 (H)
MDM (Optional)
Mobile Device Management
