TPS360 Biometric Device Overview Details Specification Download Inquiry Now
TPS360-Mobile Biometric Device.png
TPS360-Mobile Biometric Device.png
TPS360-Mobile Biometric Device.png
TPS360-Mobile Biometric Device.png
TPS360-Mobile Biometric Device.png
TPS360-Mobile Biometric Device.png

Handheld Biometric Device

TPS360 Features

TPS360 is a smart Android mobile terminal, featuring a biometric fingerprint scanner that offers accurate identification. Being the most stable biometric characteristics, fingerprint authentication can be used to prevent unauthorized physical access to the school, office, laboratory, warehouse, etc.

🔸 Compact fingerprint reader TPS360 is FBI (PIV) and Mobile ID (FAP 20) and STQC certified, supporting 4G/3G/2G network, GPS, Wi-Fi, Bluetooth 4.0
🔸 5-inch 720P HD screen, easy to hold and carry
🔸 Multiple fingerprint scanners optional to meet more fingerprint acquisition demands
🔸 Optional 5MP/8MP rear camera and 2MP front camera with strong expandability
🔸 3000/5000mAH or larger battery optional ensures the longer service life
🔸 Support NFC/IC card for various verification scenes. Silicon rubber case + 1.5m fall prevention


Function:

  • Android-01.png
    Android
  • Fingerprint-01.png
    Fingerprint
  • 5-inch Screen.png
    5-inch
  • NFC-01.png
    NFC
  • QR-code-01.png
    QRcode
  • 4G-01.png
    4G
  • Big Battery-01.png
    Big Battery
Inquiry Now

Open Source Android OS

● Free SDK
● Secondary development available
● Kernel customization supported
Open Source Android OS handheld biometric device
Touch screen Android OS handheld biometric device

Live Finger Detection(LFD) Technology

Distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.
Live Finger Detection(LFD) Technology FBI PIV and FBI Mobile ID FAP20 certificates
Live Finger Detection handheld biometric device

5000mAh Big Battery

The replaceable 5000mAh rechargeable lithium-ion battery can withstand long-term high-strength use.
5000mAh Big Battery Android OS handheld biometric device

Standard Protective Cover

Adapt to all kinds of harsh environment, meet the impact of falling to the rolling concrete ground at a height of 1.5m, and still operate stably. The color of the protective cover can be adjusted.
Standard Protective Cover handheld biometric device
Android OS handheld biometric device
#Handheld #Biometric #Rugged #Fingerprint authentication #STQCcertified #IDcard
Open Source android handheld biometric device TPS360touch screen android handheld biometric device TPS360Fingerprint reader biometric device handheld terminal TPS360TPS360 biometric Identity card device handheld terminalbig battery biometric handheld device terminal1.5m drop proof device handheld terminal TPS360Application of TPS360 biometric device handheld terminal

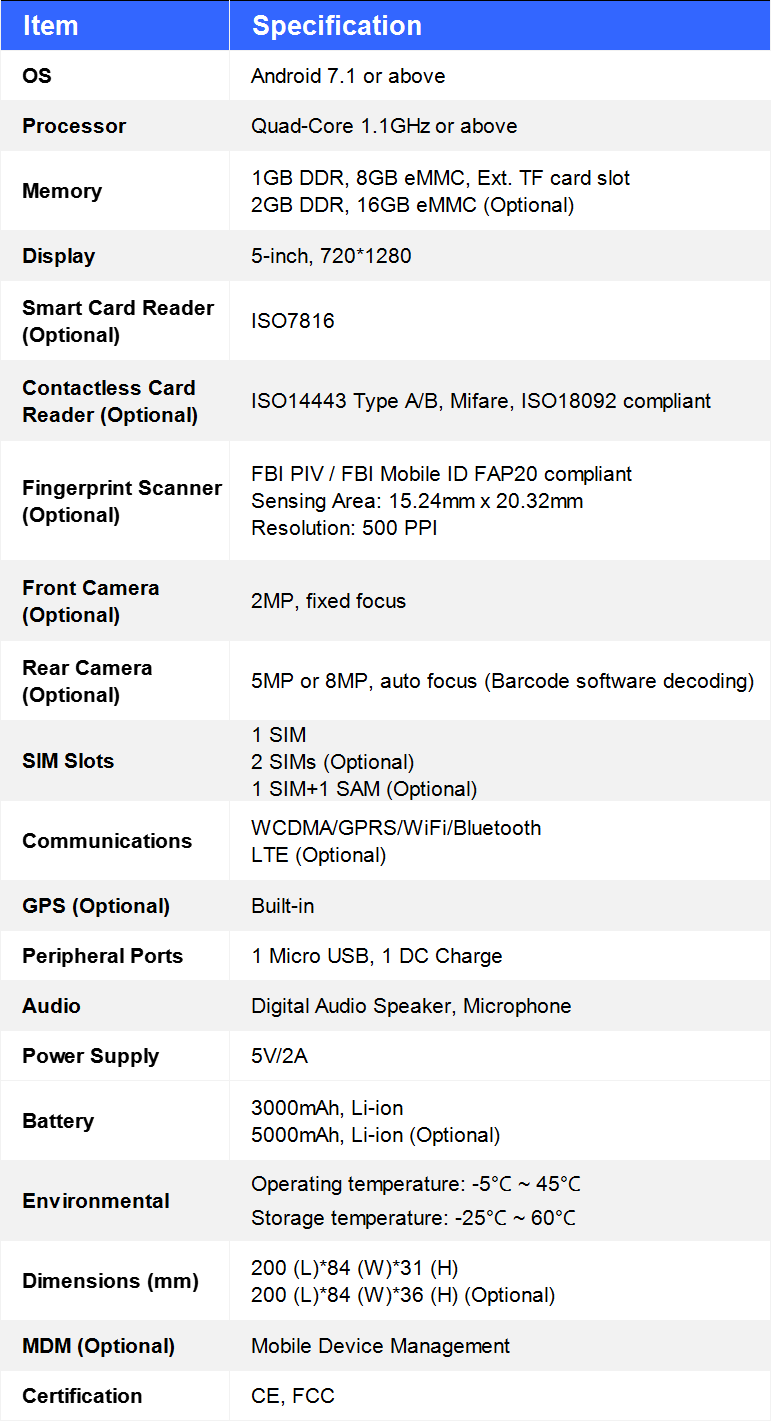

Technical Specifications

Item

Specification

Item

Specification

OS

Android 7.1 or above

Communications

WCDMA/GPRS/WiFi/Bluetooth
LTE (Optional)

Processor

Quad-Core 1.1GHz or above

GPS (Optional)

Built-in

Memory

1GB DDR, 8GB eMMC, Ext. TF card slot
2GB DDR, 16GB eMMC (Optional)

Peripheral Ports

1 Micro USB, 1 DC Charge

Display

5-inch, 720*1280

Audio

Digital Audio Speaker, Microphone

Smart Card Reader (Optional)

ISO7816

Power Supply

5V/2A

Contactless Card Reader (Optional)

ISO14443 Type A/B, Mifare, ISO18092 compliant

Battery

3000mAh, Li-ion
5000mAh, Li-ion (Optional)

Fingerprint Scanner (Optional)

FBI PIV / FBI Mobile ID FAP20 compliant
Sensing Area: 15.24mm x 20.32mm
Resolution: 500 PPI

Environmental

Operating temperature: -5℃ ~ 45℃
Storage temperature: -25℃ ~ 60℃

Front Camera (Optional)

2MP, fixed focus

Dimensions (mm)

200 (L)*84 (W)*31 (H)
200 (L)*84 (W)*36 (H) (Optional)

Rear Camera (Optional)

5MP or 8MP, auto focus (Barcode software decoding)

MDM (Optional)

Mobile Device Management

SIM Slots

1 SIM
2 SIMs (Optional)
1 SIM+1 SAM (Optional)

Certification

CE, FCC


Download

Telpo-TPS360-Specifications .pdf

Download
