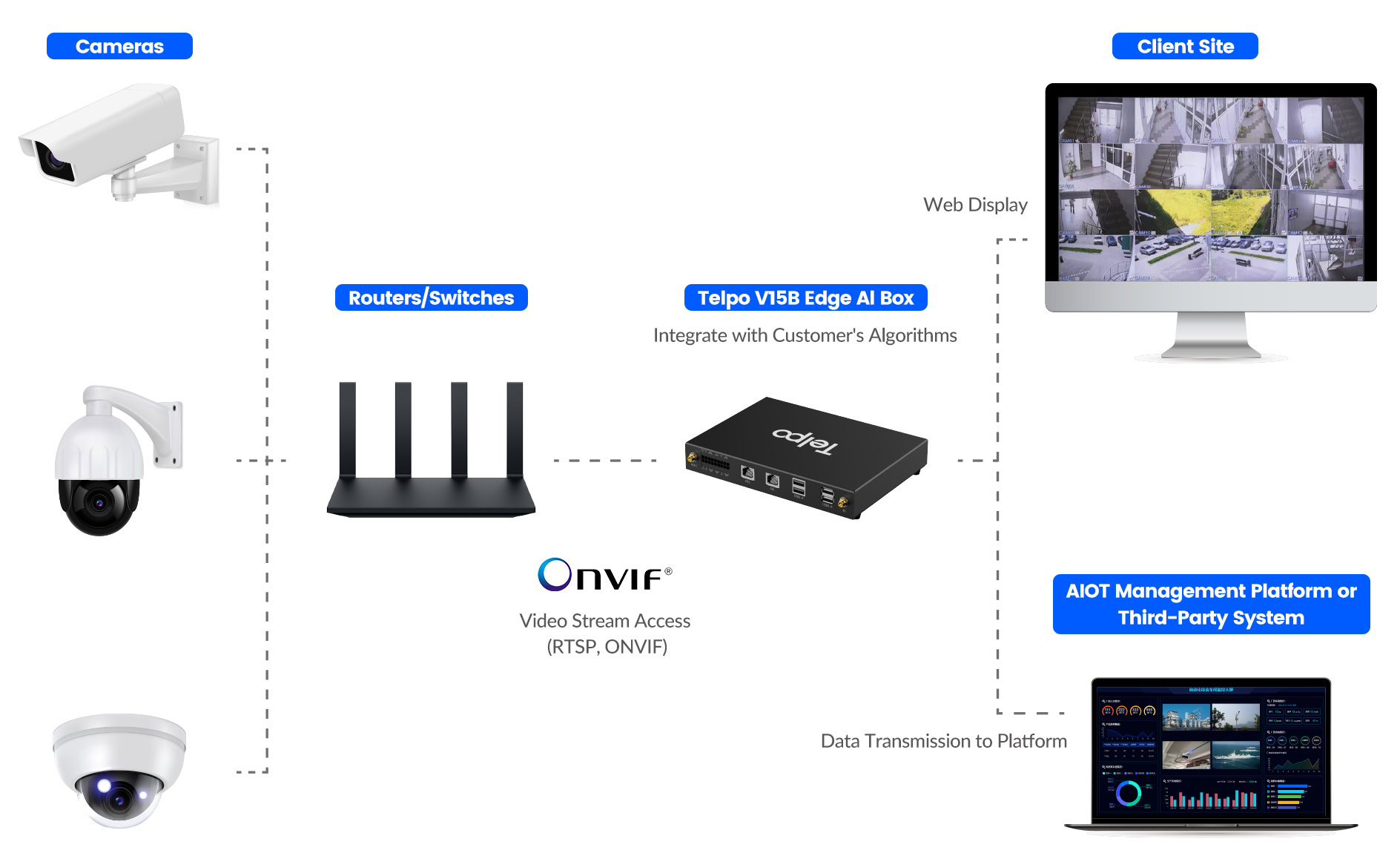

Upgrade Your Existing Intelligent Surveillance System
Breathe new life into existing cameras by adding video structuring, behavior video analysis, and data protection, which saves costs compared to replacing the entire system.
Combine with Specified IoT Devices and Algorithms for Various Scenarios
By connecting surveillance cameras and deploying AI algorithms designed for retail, it enables people counting to analyze customer flow and optimize store layouts.
When paired with surveillance cameras and integrated with city-edge computing algorithms, V15B IoT edge computer device helps manage traffic flow by analyzing traffic patterns in real-time.
When used with cameras and safety-monitoring algorithms, it conducts AI-controlled monitoring of entrances and exits, ensuring only authorized personnel and vehicles gain access.
Powerful Performance for Seamless Edge AI Processing
6 TOPS NPU
Octa-Core 2.4GHz CPU
Ensures smooth and efficient multitasking for real-time data and image processing and analysis.
8GB RAM, 64GB ROM Memory
Along with optional SSD up to 1TB, solves the problem of limited storage space.
Intelligent Visual Analysis Capacity
16-CH 1080P or 32-CH 720P Camera Connection
Perfect for multi-channel video analytics in large-
scale deployments.
Built-in Watchdog Timer
Exceptional Protection and Reliability
IP40 Protection Rating
V15B edge AI box effectively keeps dust at bay, making the V15B AI box ideal for various industrial scenarios.
Fanless Design and Full Metal Heat Dissipation
Ensures quiet and efficient operation. Its low power consumption guarantees 24/7 stability even under extreme loads.
Intelligent Visual Analysis Capacity

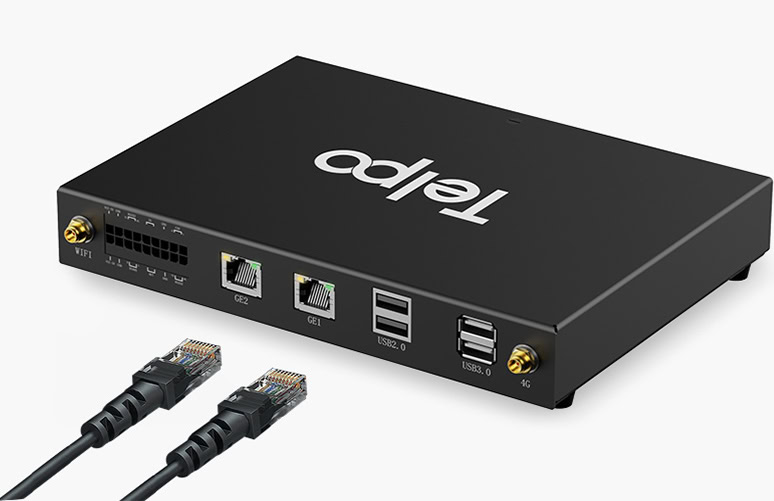

Supports Dual RJ45 Gigabit Ethernet ports with independent NICs and optional 4G module to meet diverse network connection needs.
Rich interfaces provide great convenience for connecting external IoT devices, facilitating system expansion and integration.
Technical Specifications
OS
Linux
Processor
Octa-Core 2.4GHz
Memory
8GB RAM, 64GB ROM
SSD(Optional)
M.2: 128GB, 256GB, 512GB, 1TB
Video Coding Type
H.264, H.265
Video Decoding Type
H.264, H.265, 8K VP9, AV1
Network Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, RTMP
Video Stream Input
1920*1080@30fps=16ch
or 1280*720@30fps=32ch
Communications
Ethernet
Wi-Fi (Optional)
LTE/WCDMA/GPRS (Optional)
Peripheral Ports
1 DC Port, 2 RJ45, 1 HDMI, 2 USB Type-A 2.0, 2 USB Type-A 3.0, 1 RS485, 2 RS232, 1 Type-C, 1 3.5mm Audio Jack, 1 TF Slot, 4 GPIO (2 In, 2 Out), 2 5V DC Out
SIM Slots (Optional)
1 SIM Slot
Keypad
1 Power Key, 1 Reset Key, 1 Recovery Key, 1 Makrom Key
Indicator Light
1 Power LED, 1 Status LED
Power Supply
12V/3A
Environmental
Operating temperature: -10℃ ~ 50℃
Storage temperature: -20℃ ~ 75℃
