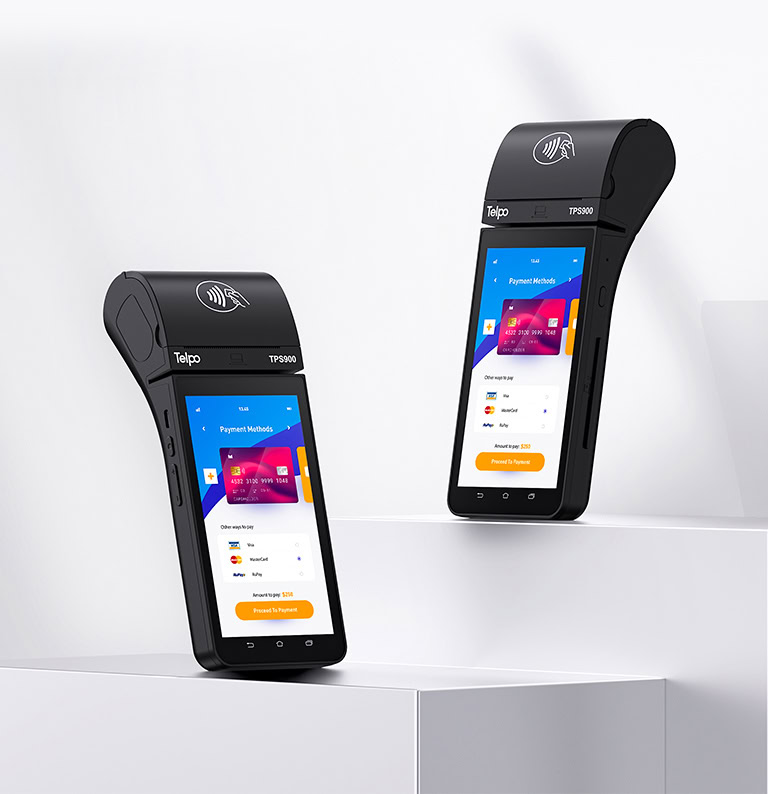

TPS900
Payment Terminal
A Versatile Partner for Business Scenarios
TPS900 enhances banking service while adhering to PCI and EMV standards for tamper-proof data security. By integrating a fingerprint scanner, it can be applied to KYC procedure, ensuring quick and accurate customer identification.

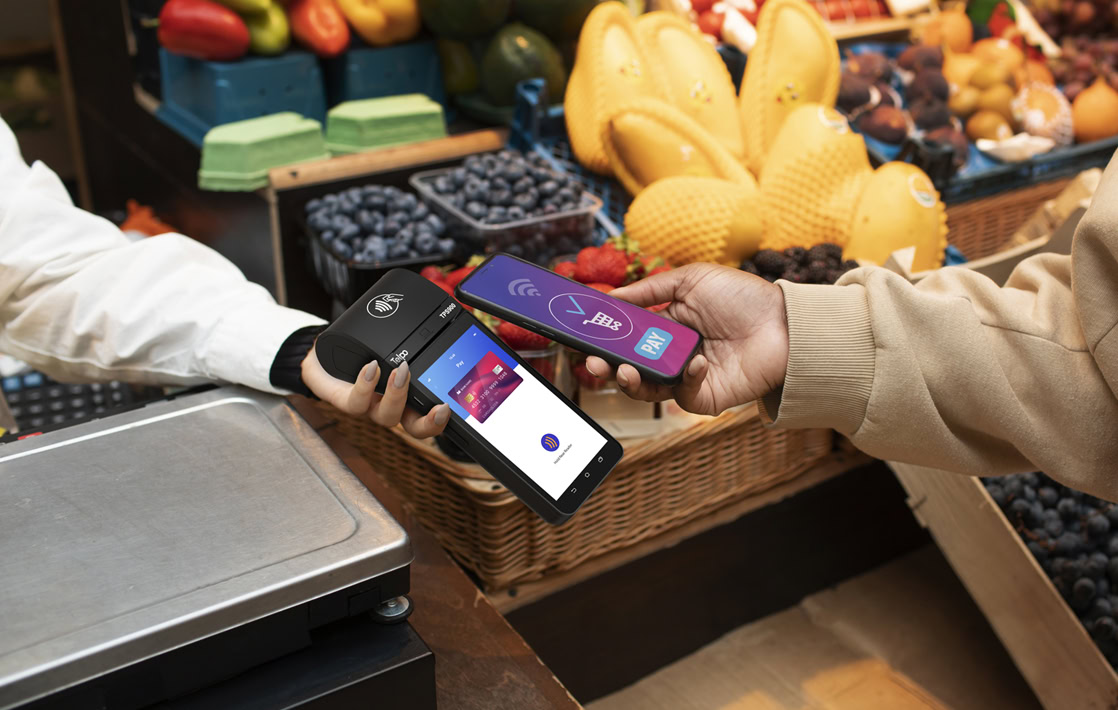

TPS900 simplifies retail operations by combining payment and receipt printing. Its compatibility with tax control modules ensures compliance with local regulations, helping merchants synchronize data and minimize tax evasion risks.

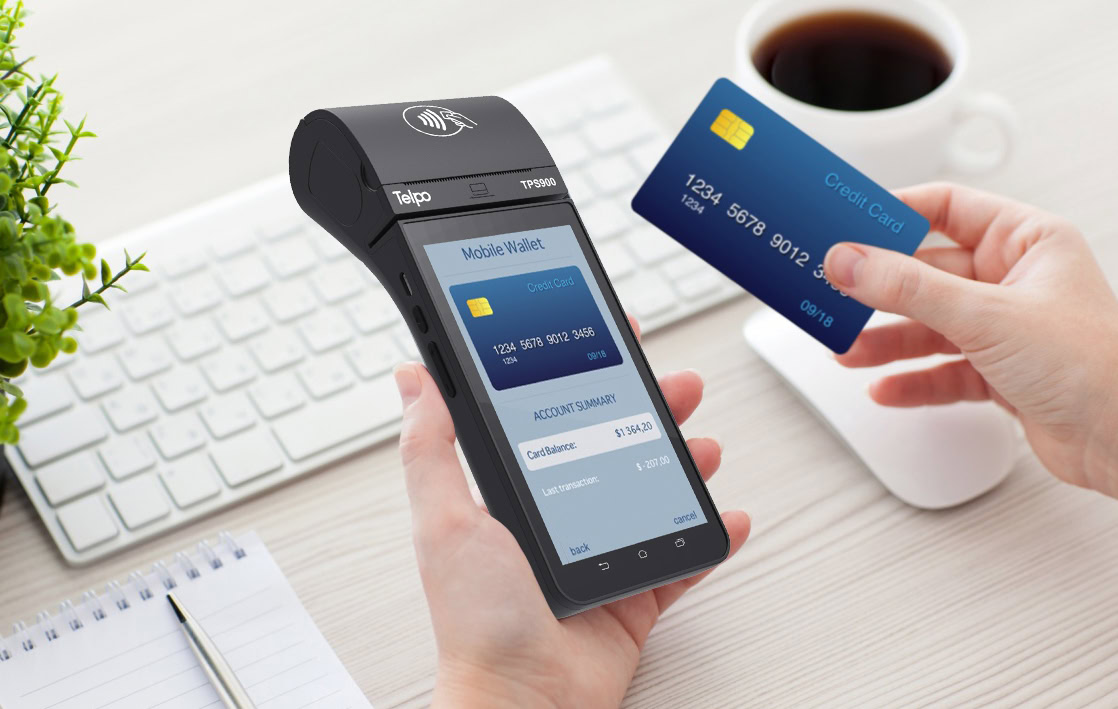

Supporting multiple payment methods, TPS900 makes prepaid top-ups and bill payments faster and more secure. With robust communication capabilities, vendors can process prepaid services and sync data instantly.

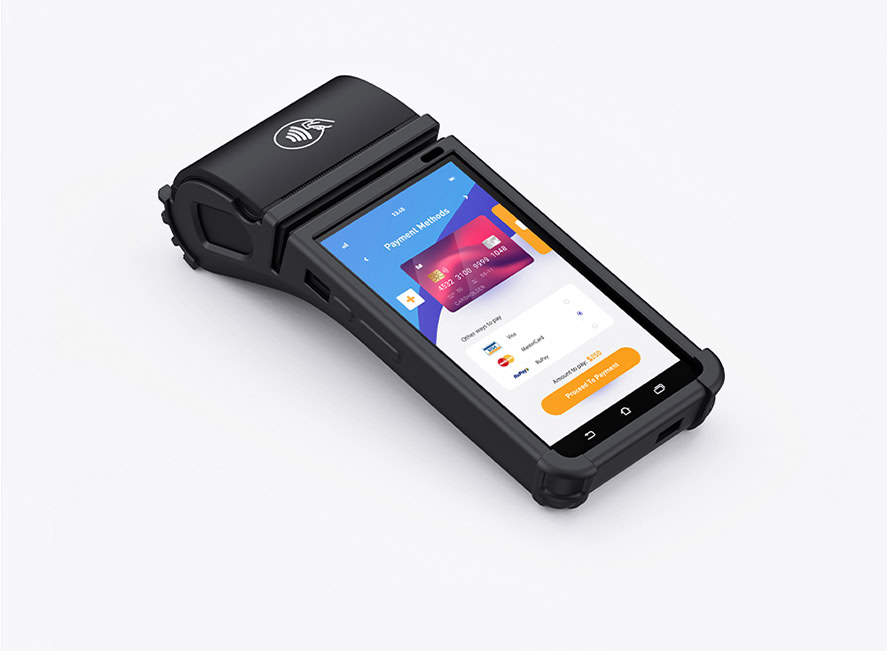

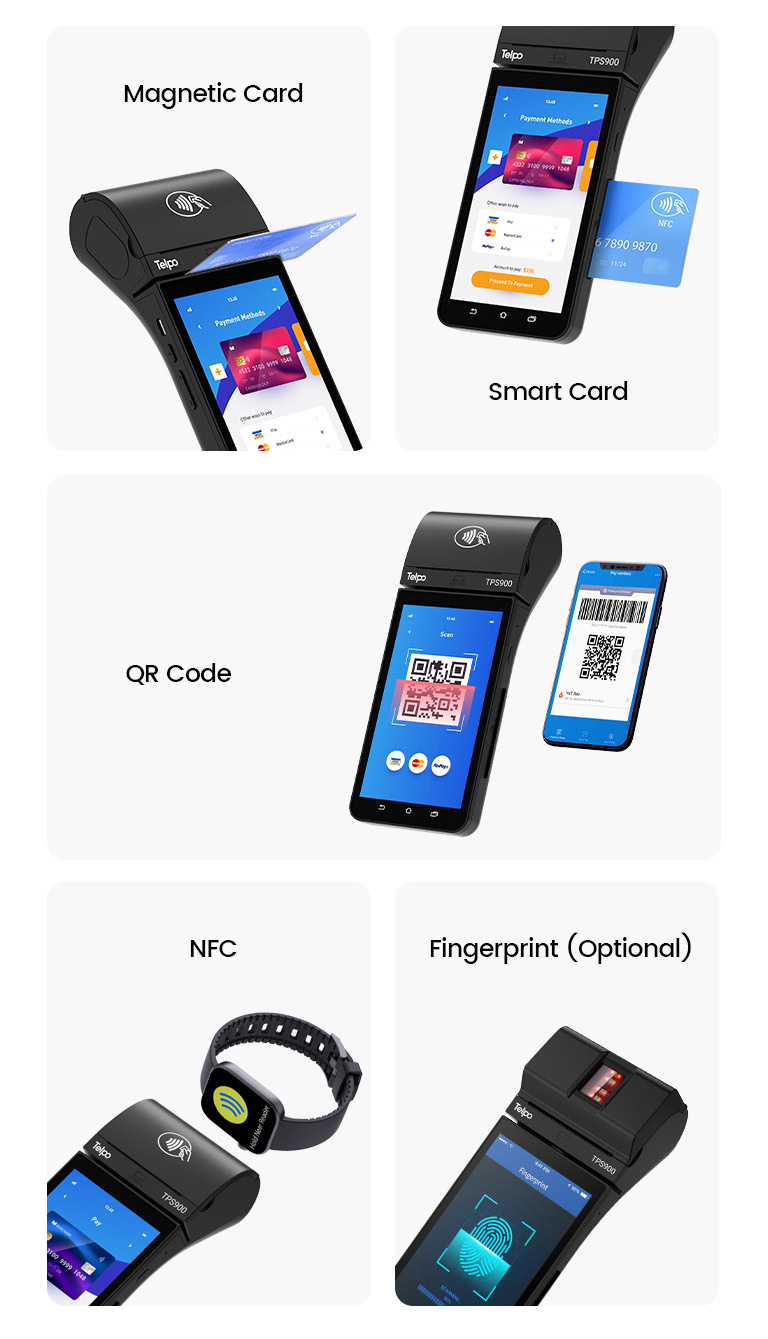

Versatile Payment Options
Magnetic Card
Smart Card
QR Code
NFC
Fingerprint (Optional)
PCI 6.x Security Standards
Compliance
EMV Certification
MasterCard PayPass
Approval
Visa PayWave Approval
NPCI Rupay Certification
TQM Certification
Versatile Payment Options
Evolution Meets Excellence
Upgraded hardware and software ensure smoother operations and greater efficiency for businesses.
Upgraded
Android version
Up to 4GB+64GB
memory capacity
Faster charging with
5V/3A power adapter
* Memory and power adapter is optional

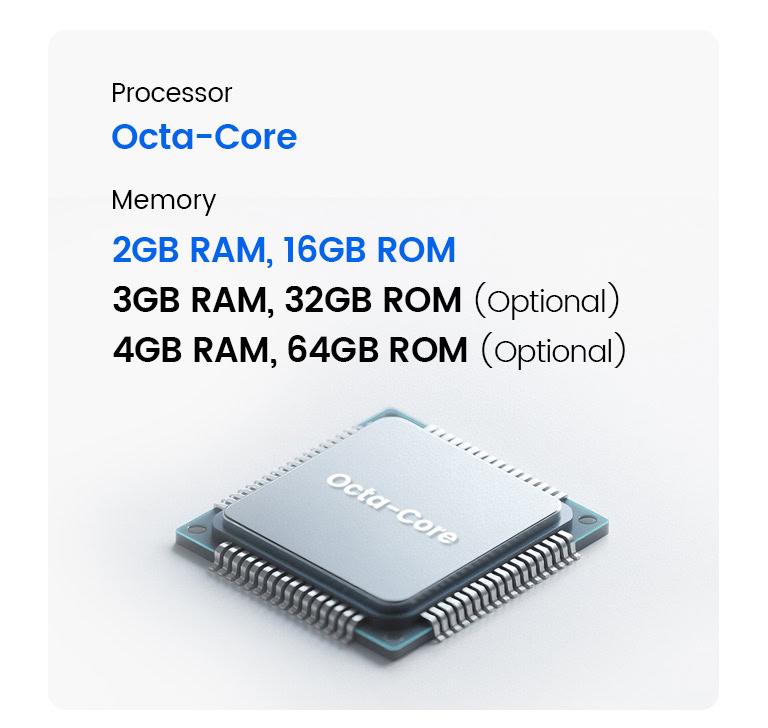

Seamless Multitasking Capability
with Enhanced Performance

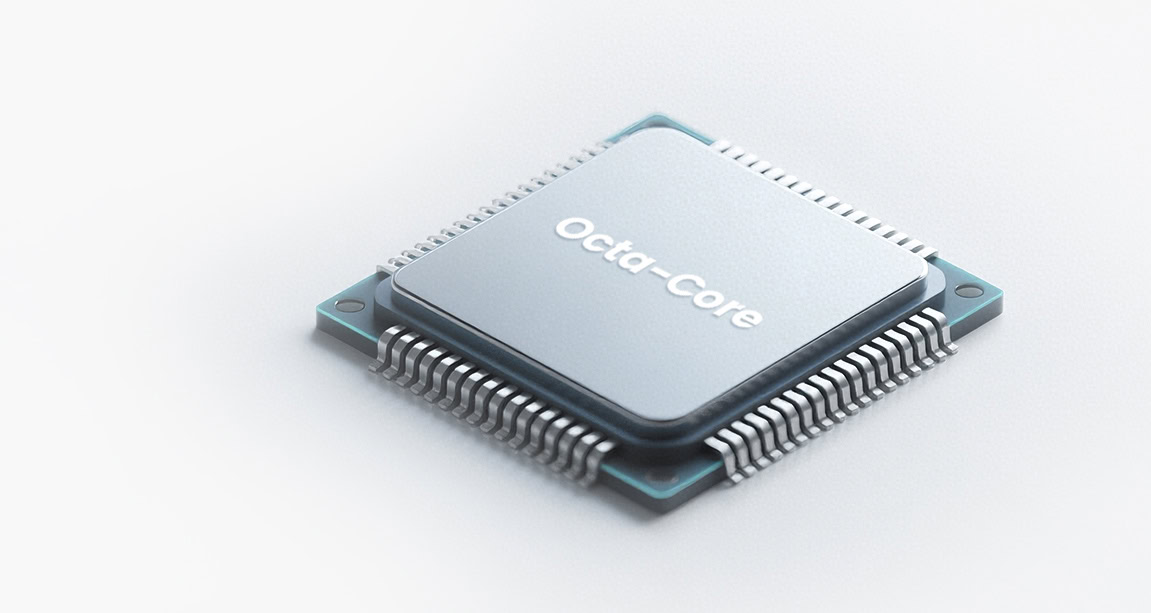

Octa-Core
2GB RAM, 16GB ROM
3GB RAM, 32GB ROM (Optional)
4GB RAM, 64GB ROM (Optional)
Telpo OS (Optional)
Please consult sales for specific versions
Seamless Multitasking Capability with
Enhanced Performance
Always Connected, Always Reliable
Always Connected,
Always Reliable

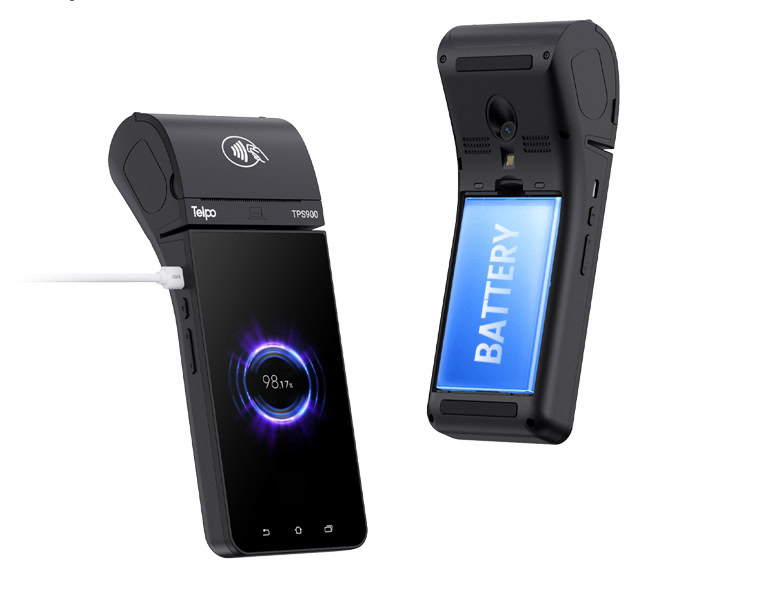

Robust Battery Solutions for Continuous Operation

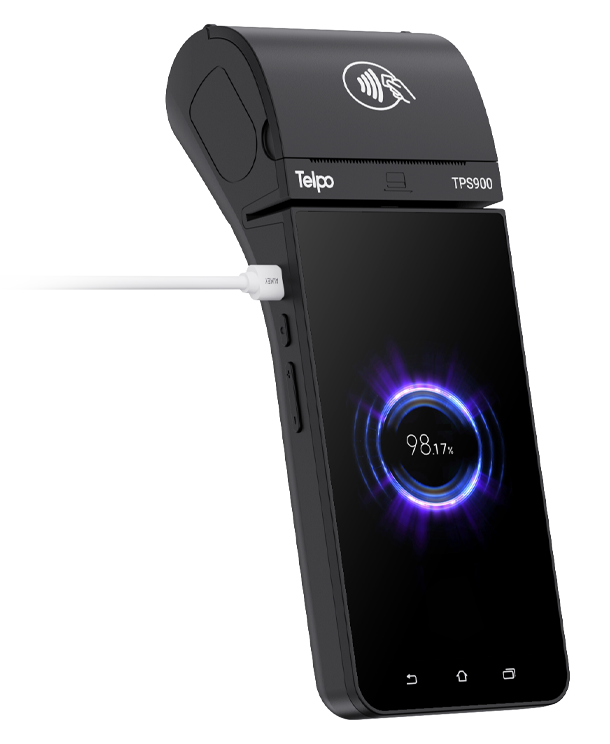

Faster Charging with
Optional 5V/3A
Standard: 5V/2A
Optional: 5V/3A

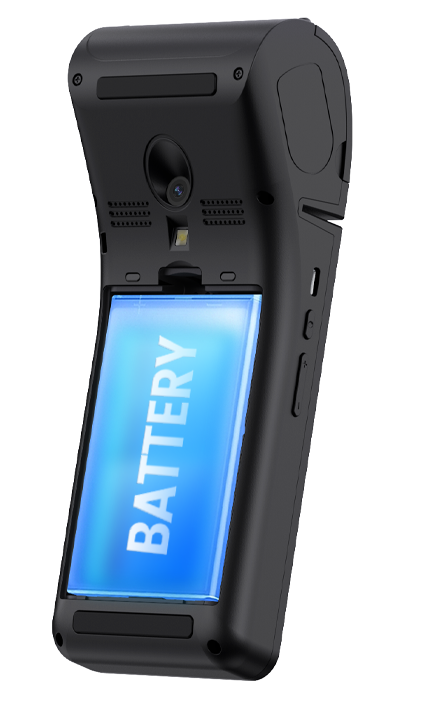

High-Capacity Battery
Standard:7.6V/3000mAh
Optional:7.6V/4400mAh
Robust Battery Solutions
for Continuous Operation
High-Capacity Battery
Supports up to 15 hours of continuous operation and 12 days of standby time, making it suitable for high-volume or all-day payment processing scenarios
Standard: 7.6V/3000mAh
Optional:7.6V/4400mAh
Optional 5V/3A Adapter for
Faster Charging
Standard: 5V/2A
Optional: 5V/3A

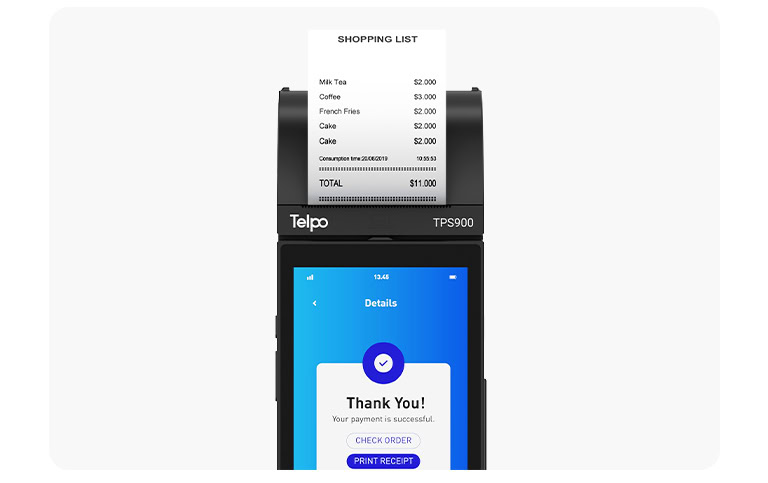

Efficient Printing Boosts Productivity
Compact 40mm OD Design
Print more efficiently with fewer paper replacements.
Up to 80mm/s Printing Speed
times and speeding up transaction processing.
More than 100km Lifespan
frequent replacements.
Efficient Printing
Boosts Productivity
Compact 40mm OD Design
Print more efficiently with fewer paper replacements.
Up to 80mm/s Printing Speed
Ensures quick generation of receipts, reducing customer wait times and speeding up transaction processing.
More than 100km Lifespan
Designed to handle high-volume printing needs without frequent replacements.
Release Business Potential with
Robust Customization
Tailor the TPS900 smart POS to your unique needs

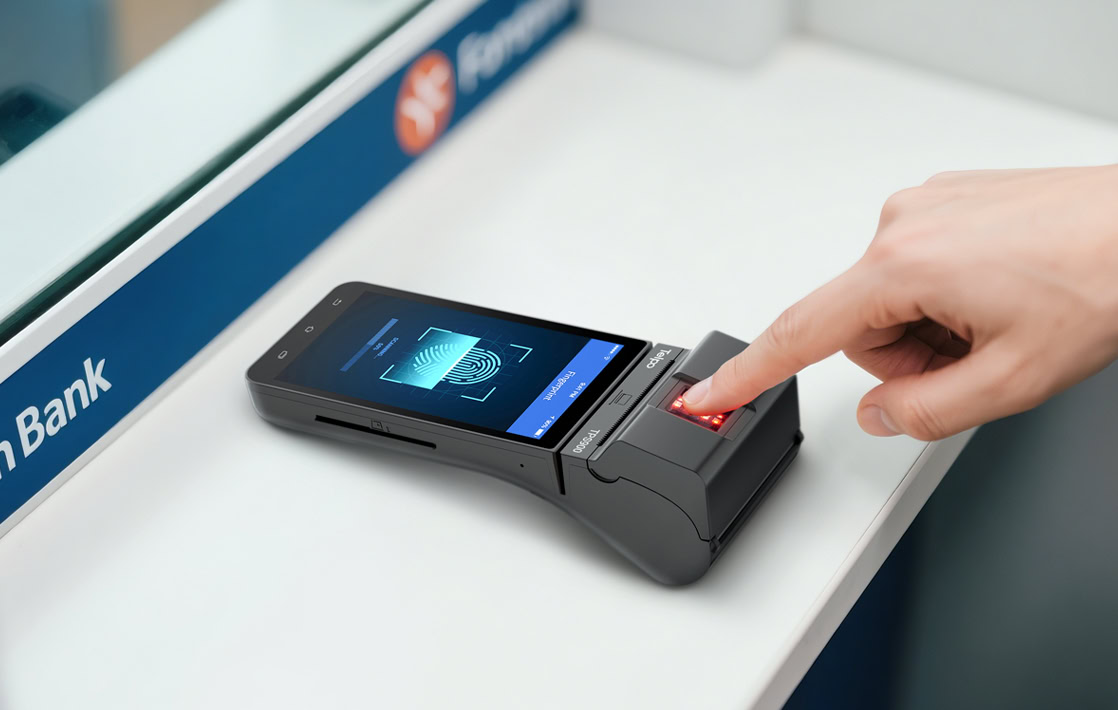

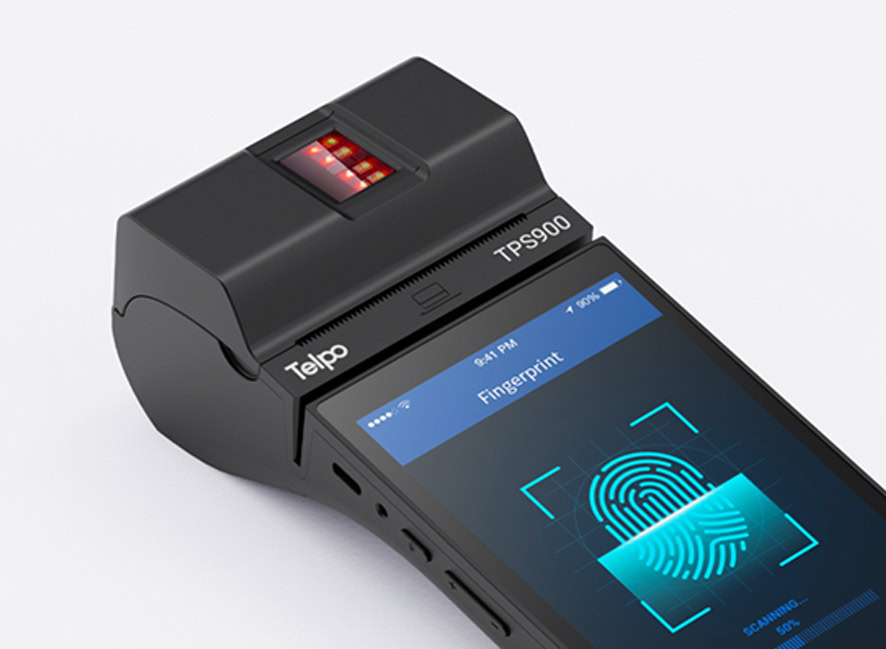

FBI Certified Fingerprint Scanner
Built in a fingerprint scanner with an ergonomic scanning angle, TPS900 offers a user-friendly experience for payments and banking KYC. It can verify identities in seconds without extra devices.

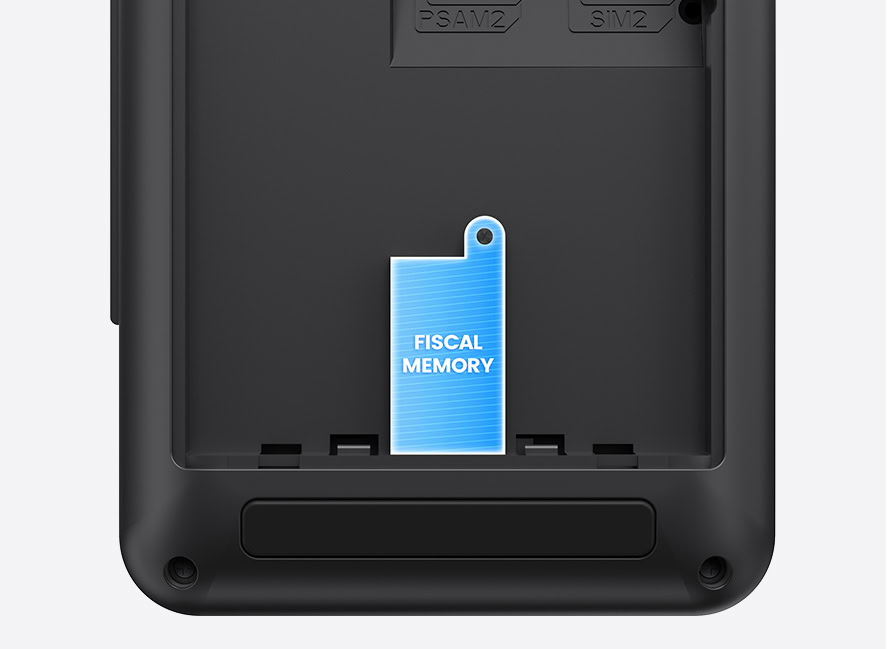

Tax Control Module Compatibility
For businesses requiring fiscal compliance.
Flexible Accessories for Versatile Applications

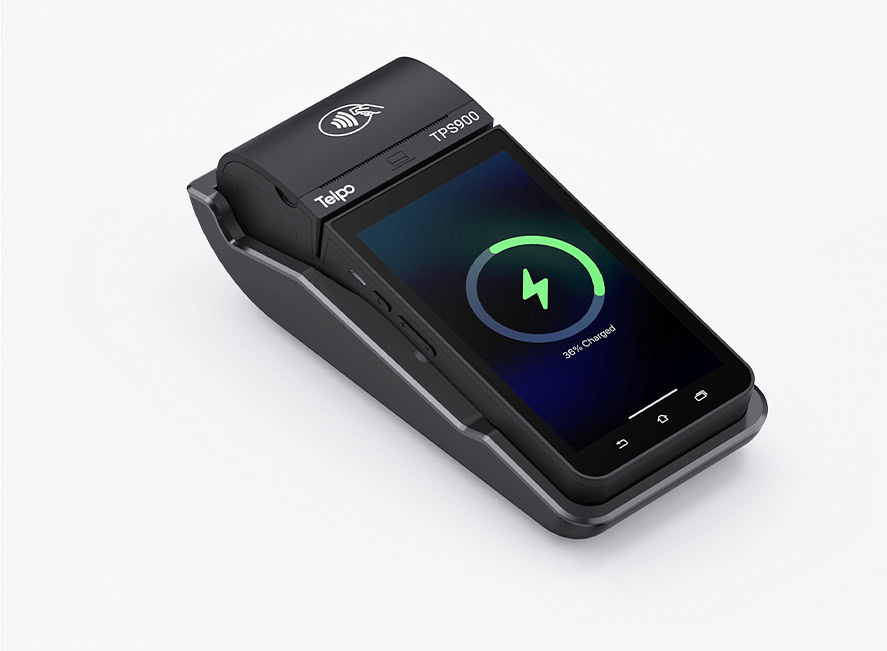

Charging Base
Offers convenient charging options for the
entire device or just the battery.
Silicone Case
Provides additional drop protection and a
comfortable grip.
Telpo Platform Service
Improve your business management efficiency and profits
Telpo MDM
An efficient platform for terminal management
Telpo OS
The operation system tailored for Telpo users
Telpo APP Store
Provide mass functional apps
Telpo SDK
Efficient cross-platform development solution
Technical Specifications
OS
Telpo OS (Based on Android)
Memory
1GB RAM, 8GB ROM
2GB RAM, 16GB ROM
(Optional)
3GB RAM, 32GB ROM (Optional)
4GB RAM, 64GB ROM (Optional)
Ext. TF card slot(Optional)
Processor
Quad-Core
Octa-Core (Optional)
Display
5.5", 720*1280
Keypad
Softkeys
Thermal Printer
Paper Width: 58mm, 40mm
Smart Card Reader
ISO7816
Camera
Rear: 5M Pixel, Auto Focus (Barcode software decoding)
Rear: 13M Pixel, Auto Focus (Optional)
Front: 2M Pixel, Fixed-Focus (Optional)
Front: 5M Pixel, Fixed-Focus (Optional)
Contactless Card Reader (Optional)
IS014443 Type A/B, Mifare
Magnetic Card Reader
Track 1/2/3, Bi-Directional Swipe, ISO7810, ISO7811, ISO7812, ISO7813
Fingerprint Scanner (Optional)
ANSI/ INCITS 378, ISO/ IEC 19794-2
FBI or STQC (Optional)
Iris (Optional)
Support
SIM Slots
2 SIMs
1 SIM (Optional)
SAM Slots (Optional)
ISO7816, 1 SAM
4 PSAMs (Optional)
Communications
LTE/WCDMA/GPRS/
Wi-Fi/Bluetooth
GPS (Optional)
Built-in
Peripheral Ports
1 USB (Type-C shape)
2 USB (Type-C shape) (Optional)
Audio
Digital Audio Speaker, Microphone (Optional)
Battery
7.6V/3000mAh, Li-ion
7.6V/4400mAh, Li-ion (Optional)
7.2V/2600mAh, Li-ion(18650)(Optional)
Power Supply
5V/2A
5V/3A (Optional)
Docking Station (Optional)
Charging
Ethernet, USB (Optional)
Dimensions (mm)
212 (L)*82 (W)*55 (H)
Weight (g)
475 (for device only)
630 (with box)
MDM (Optional)
Mobile Device Management
Environmental
Operating Temperature: -5 C ~ 45 C
Storage Temperature: -25C ~ 60 C
Certification
PCI PTS V6.x, EMV L1&L2, EMV Contactless L1, Paywave, Paypass, AMEX, Discover, UnionPay, Rupay, Pure, TQM, CE, FCC, RoHS, BIS
