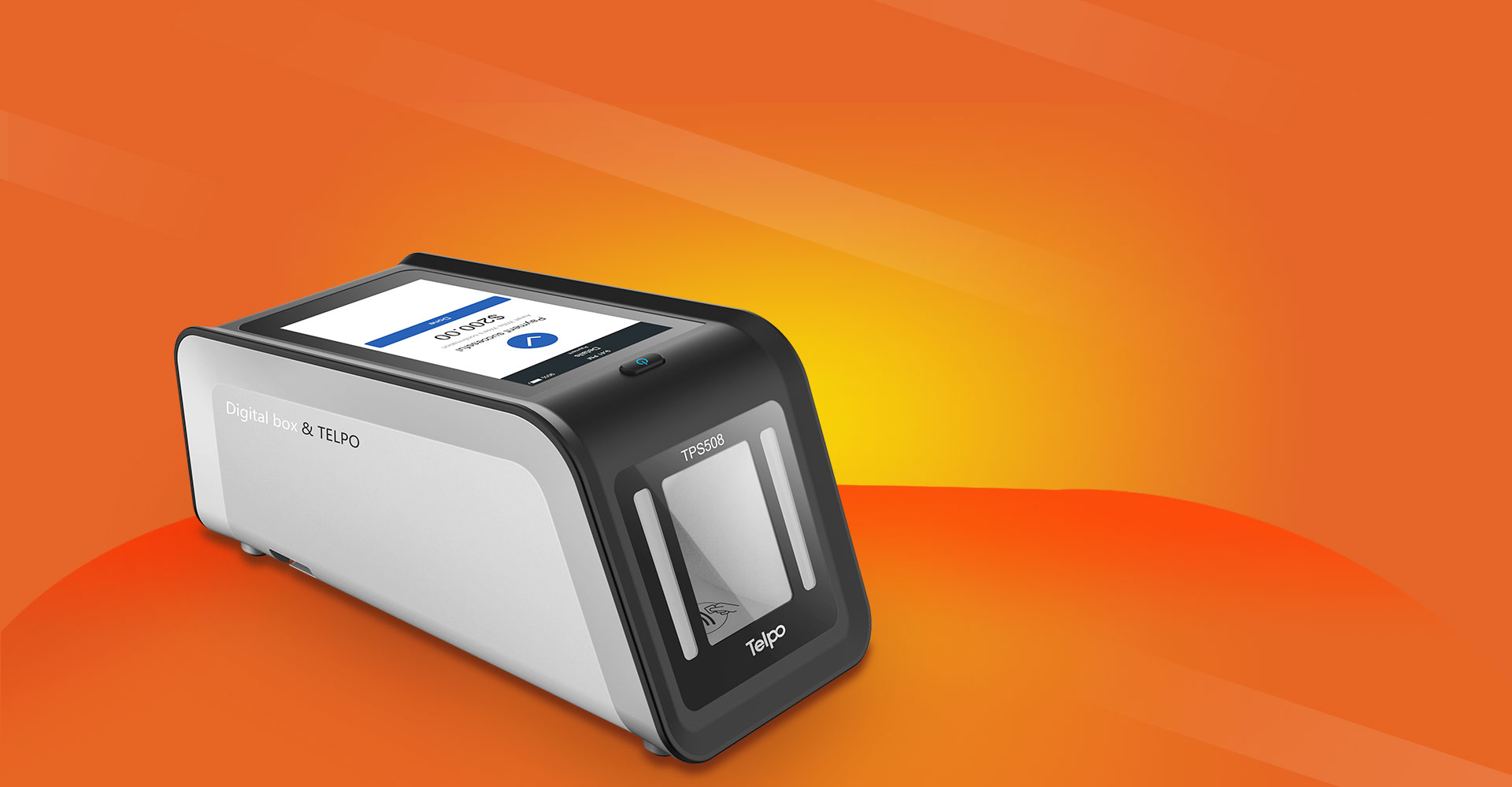

Desktop Smart QR-code Reader POS

TPS508

Desktop Smart QR-code Reader POS

At present, some small stores print their money receiving QR code and stick them at the door for collecting bills. It indeed sounds convenient, but some news also revealed that this way will give criminals the opportunity to change that receiving code and cause capital loss.


To solve this problem, Telpo specially launched a QR Code-based POS devices --TPS508, which is a fully functional mobile payment device.


Desktop Smart QR-code Reader POS


Smart QR Code reader POS TPS508 with small size and delicate appearance can effectively recognize QR Code on mobile phones and automatically operation payment processes. Enable connect 98% cashier system on the market, reduce input cost. It is widely used in supermarkets, restaurants, and shopping malls, and so on.


POS Device Desktop Smart QR-code Reader POS





Smart QR-code Reader POS


Touch screen Desktop Smart QR-code Reader POS


Speedy 1D 2D Code Scanner

Contain a QR Code reader and adopts a 70-degree scanning angle, ensuring quick and successful payment.

Efficient QR code recognition allows customers independent payment and saves queuing time.


Scanning speed :<1s,

Printing speed: 60mm/s


Large Storage, Smooth Operation

QR-Code reader POS TPS508 contains Android 7.1 OS,1GB RAM and 8GB ROM,ensuring

 large storage and several Apps smoothly operate at the same time.


Desktop Smart QR-code Reader POS touch screen


5-inch Touchable Screen

Different from most of the barcode scanner, TPS508 is a 5-inch touch screen with resolution 1280*720.

Customers can clearly review every detail of their payments.



Smart QR-code Reader POS



Desktop Smart QR-code Reader POS


Contactless Reader

Contactless readers can be installed and can be used to read NFC cards, such as membership cards, loyalty cards, etc.

Thermal Printer

Inbuilt 58mm thermal printer has a lifespan up to 50 km, so that offer the receipts and invoices immediately after successful payment.

It supports Multiple Keyboard Languages, such as English, Arábica, German, French, Italian, Spanish, Japanese, etc.



Desktop Smart QR-code Reader POS


Smart Voice Broadcast


Equipping with the voice broadcast, QR Code POS TPS508 will automatically notice the payment condition.

Supplementary light and print receipt triple, real-time obtain transaction condition, guarantee secure and successful payment.

(blue:success; red:fail)



Smart QR-code Reader POS


Desktop Smart QR-code Reader POS


Battery Powered and Plug-in Charging


TPS508 contains a 2500mAh battery that enables 15h standby and 4h working operation and it also supports plug-in charging.

 It can be used as a mobile POS and work as usual even if the power is off.



Desktop Smart QR-code Reader POS


Seamless Connect with Checkout Counter

Built-in Rich interfaces ensure seamlessly connect with cash devices, such as cash registers, PIN-PAD, cash drawers, 80mm thermal printers,  routers, and so on.



Good Connectivity

WI-FI, 4G, Bluetooth, Ethernet are supported to maintain good information transmission.


Smart QR-code Reader POS


Desktop Smart QR-code Reader POS


Applications

This system of QR Code payment applies to all kinds of scenarios such as supermarkets, 7-11/burger king retail stores, restaurants, shopping malls, clothes shops, drugstore, etc.

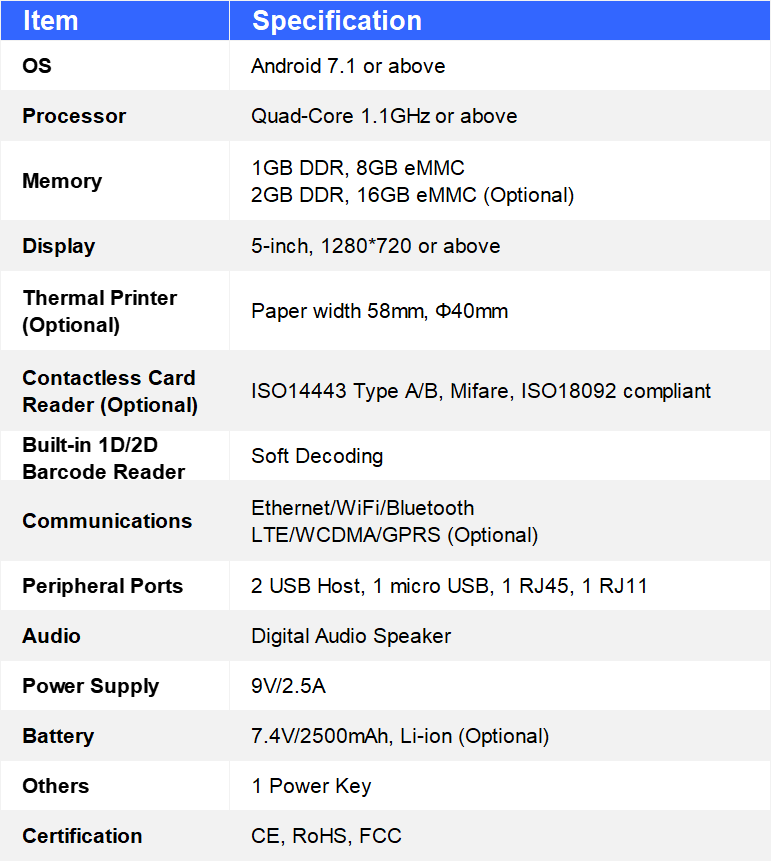

Specification

Smart QR-code Reader POS




OSAndroid 7.1 or above
ProcessorQuad-Core 1.1GHz or above
Memory1GB DDR, 8GB eMMC, Ext. TF card slot
    2GB DDR, 16GB eMMC (Optional)
Display5-inch, 1280*720 or above
Thermal Printer (Optional)Paper width 58mm, Φ40mm
Contactless Card Reader (Optional)ISO14443 Type A/B, Mifare, ISO18092 compliant
Built-in 1D/2D Barcode ReaderSoft Decoding
    Hard Decoding (Optional)
CommunicationsEthernet/WiFi/Bluetooth
    LTE/WCDMA/GPRS (Optional)
Peripheral Ports2 USB Host, 1 micro USB, 1 RJ45, 1 RJ11
AudioDigital Audio Speaker
Power Supply9V/2.5A
Battery7.4V/2500mAh, Li-ion (Optional)
Others1 Power Key
CertificationCE


Video

Telpo TPS508 Digital Payment Assistant of Retailer

Smart QR Code reader POS TPS508 with small size and delicate appearance can effectively recognize QR Code on mobile phones and automatically operation payment processes. Enable connect 98% cashier system on the market, reduce input cost. It is widely used in supermarkets, restaurants, and shopping malls, and so on.
