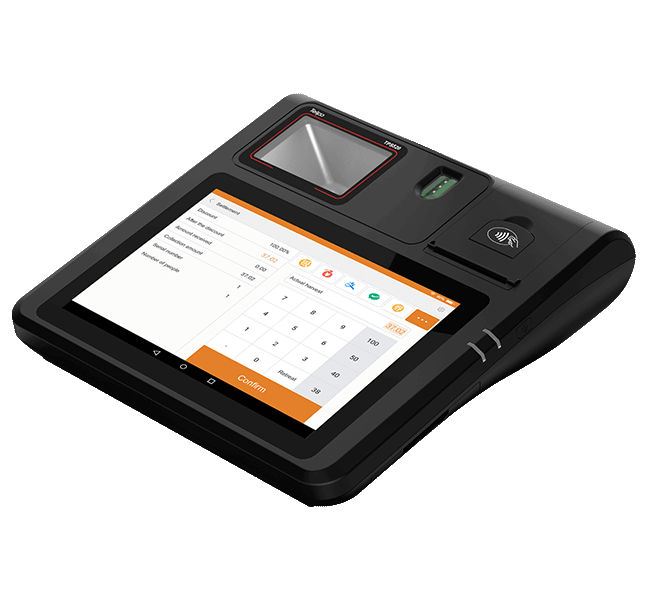

10-Inch Android All-in-one Desktop POS Terminal

TPS520

10-Inch Android All-in-one Desktop POS Terminal

10-Inch Android All-in-one Desktop POS Terminal


Product Description

All-in-one Cash Register Machine TPS520 is an intact retail solution for the new retail industry.

It adopts a new elegant and mellow design with a 10-inch big screen, containing NFC, printer, barcode scanner, fingerprint scanner functions.

Fully applicable to retail stores, lottery, cash register, biometric applications.


10-Inch Android All-in-one Desktop POS Terminal


High Performance

Based on Android 6.0 OS and RK3368 chip, its stable performance enables it to operate complicated software easily.

POS terminal TPS520 provides a standard SDK interface for development.



5.5-Inch Biometric Face Recognition Machine


10-Inch Android All-in-one Desktop POS Terminal

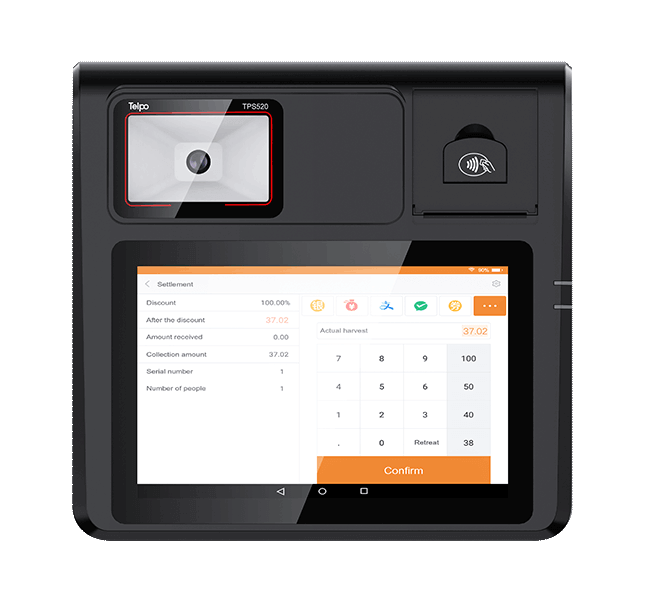

10-inch HD Screen

10-inch HD display screen is conductive to flexible use in daily routine.

15 degrees of tilt design offers a better vision.

 Ordering is more direct and clear.


10-Inch Android All-in-one Desktop POS Terminal


Multiple functions

Employing Optical fingerprint reader module enable effective fingerprint recognition.

Barcode/ QR-code recognition and NFC reading are also available.



5.5-Inch Biometric Face Recognition Machine



10-Inch Android All-in-one Desktop POS Terminal


Thermal Printer

Built-in thermal printer with 58mm paper width, 50mm roll diameter and 60mm/sec print speed.

It supports printing QR codes, texts, images, and customized print content.



10-Inch Android All-in-one Desktop Pos Terminal


Communication

4G/3G/2G, GPS, Wi-Fi, Bluetooth 4.0 are supported.



5.5-Inch Biometric Face Recognition Machine


10-Inch Android All-in-one Desktop POS Terminal

Battery-based

The 7.4V, 2500mAh battery can standby above 3 days and capable to prevent the sudden power failure during data update.


10-Inch Android All-in-one Desktop POS Terminal

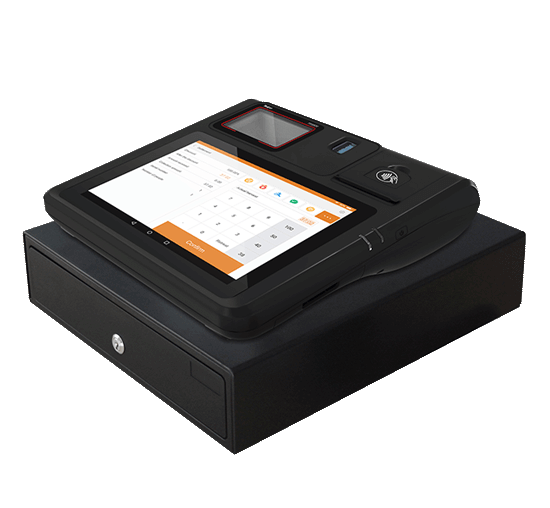

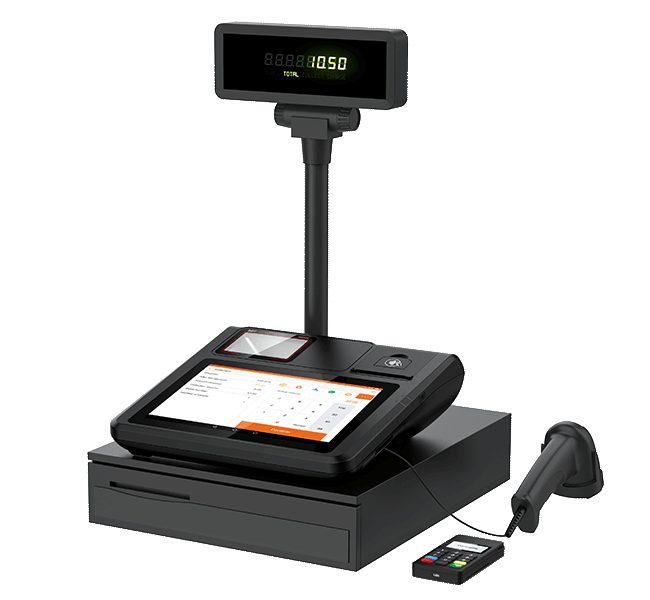

Rich Interfaces

A wide range of external interfaces allows it to connect with various cashier devices

such as cash drawers, barcode scanners, MPOS, OCR recognition and so on.



5.5-Inch Biometric Face Recognition Machine

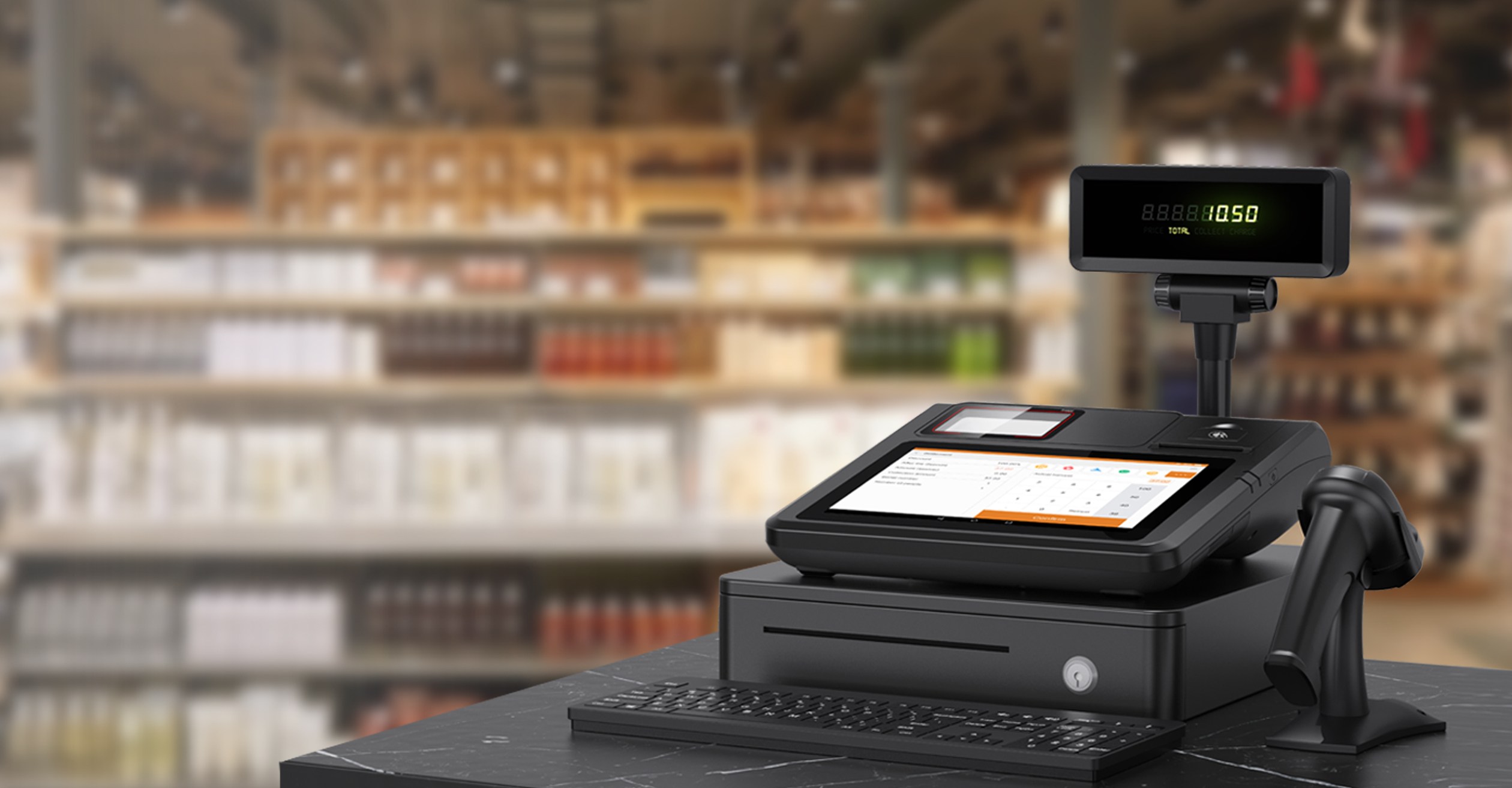

Applications

Telpo desktop POS TPS520 can be used for retail stores(grocery, barky store, shoe shop), loyalty program, visitor registration(hotels, office), restaurants(booking the seat), etc.

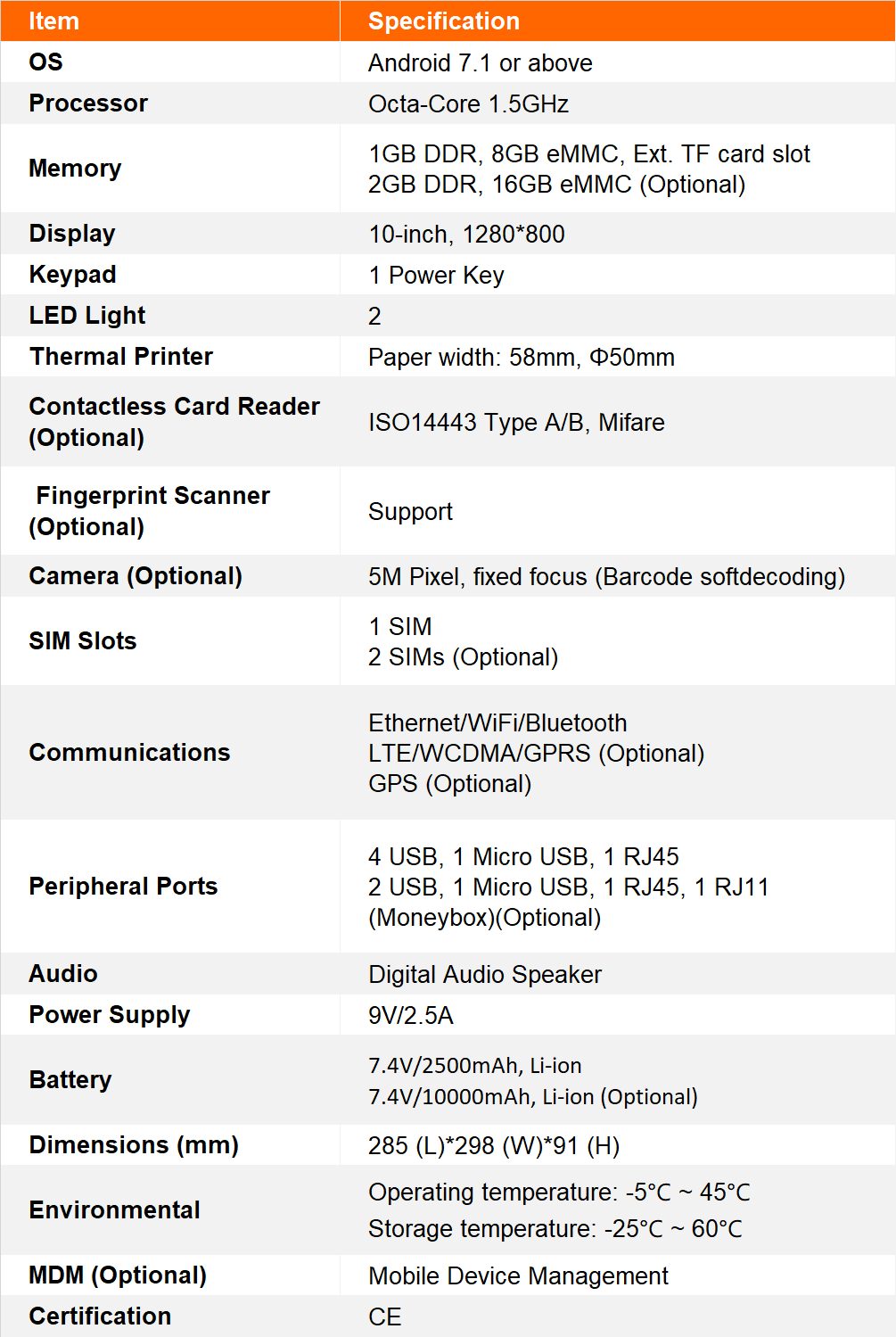

Specification

OSAndroid 6.0 or above
ProcessorOcta-Core 1.5GHz
Memory1GB DDR, 8GB eMMC, Ext. TF card slot
2GB DDR, 16GB eMMC (Optional)
Display10-inch, 1280*800
Keypad1 Power Key
LED Light2
Thermal PrinterPaper width: 58mm, Φ50mm
Contactless Card Reader (Optional)ISO14443 Type A/B, Mifare, ISO18092 compliant
 Fingerprint Scanner (Optional)Support
Camera (Optional)5M Pixel, fixed focus (Barcode soft decoding)
SIM Slots1 SIM
2 SIMs (Optional)
CommunicationsWCDMA/GPRS/Ethernet/WiFi/Bluetooth
LTE/GPS (Optional)
Peripheral Ports4 USB Host, 1 micro USB, 1 RJ45
2 USB Host, 1 micro USB, 1 RJ45, 1 RJ11 (Moneybox)(Optional)
AudioDigital Audio Speaker
Power Supply9V/2.5A
Battery7.4V/2500mAh, Li-ion
7.4V/10000mAh, Li-ion   (Optional)
Dimensions (mm)285 (L)*298 (W)*91 (H)
EnvironmentalOperating temperature: -5℃ ~ 45℃
Storage temperature: -25℃ ~ 60℃
MDM (Optional)Mobile Device Management
CertificationCE
