C9W
Windows POS
Built for Stability, Compatibility, and The Flexibility to Configure What Your Operation Needs.
C9 Family
Windows POS Machine Ideal for High-Demand Environments

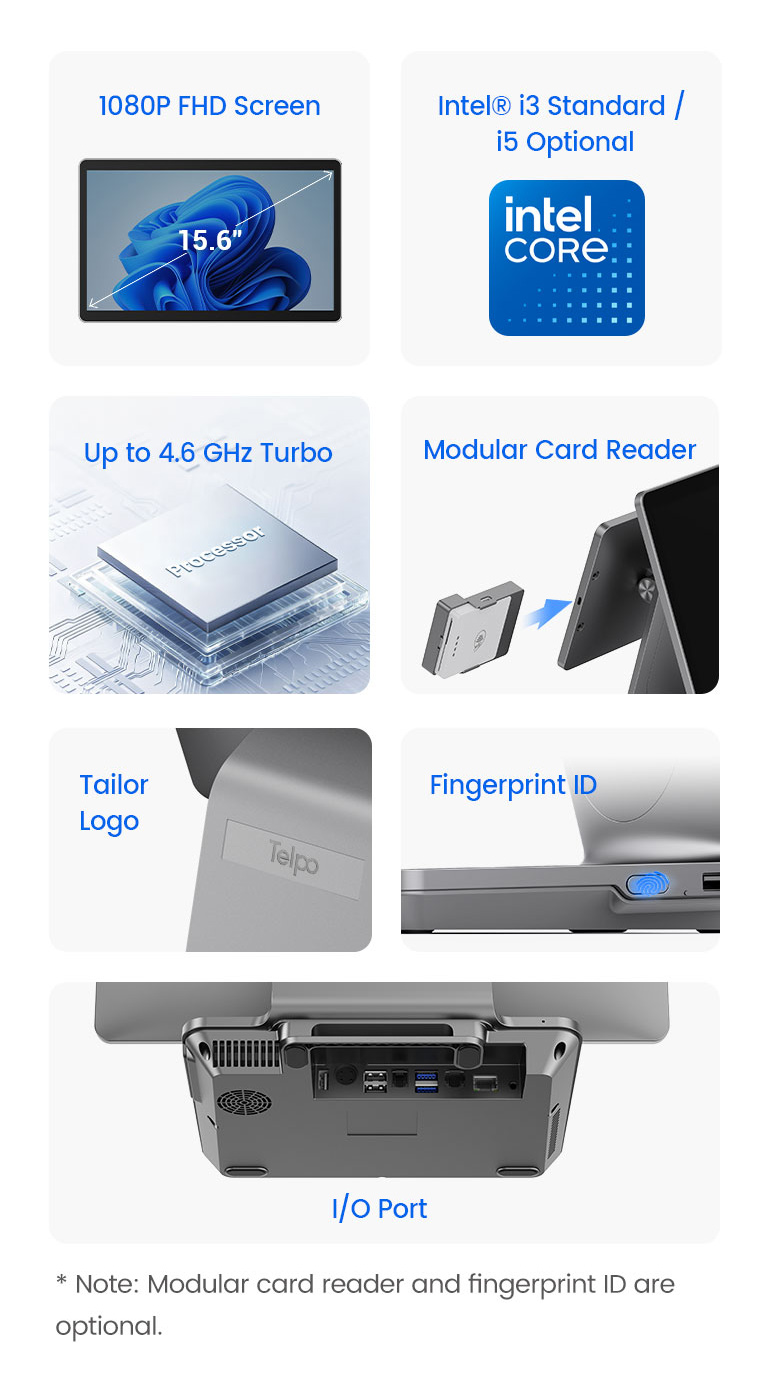

15.6" 1080P FHD Screen
Modular
Card Reader
Intel® i3 Standard / i5 Optional
Rich I/O Ports
Up to 4.6 GHz Turbo
Fingerprint ID
Tailor Logo
Windows POS Machine Ideal for High-Demand Environments
Wherever Businesses Happen, the C9W Is Ready.
The Right Processing Power for Every Type of Operation
Intel® Core™ i3
Win 11 IOT LTSC Enterprise · High Compatibility
-
Reliable performance for full-service POS environments.
-
Broad Windows software ecosystem support.
-
Consistent thermal management for long operating hours.
Intel® Core™ i5
Ten-Core · Up to 4.6 GHz Turbo
-
Handles concurrent workloads.
-
4.6 GHz Turbo for instantaneous transaction processing.
-
Reduces wait time during peak-hour ordering surges.

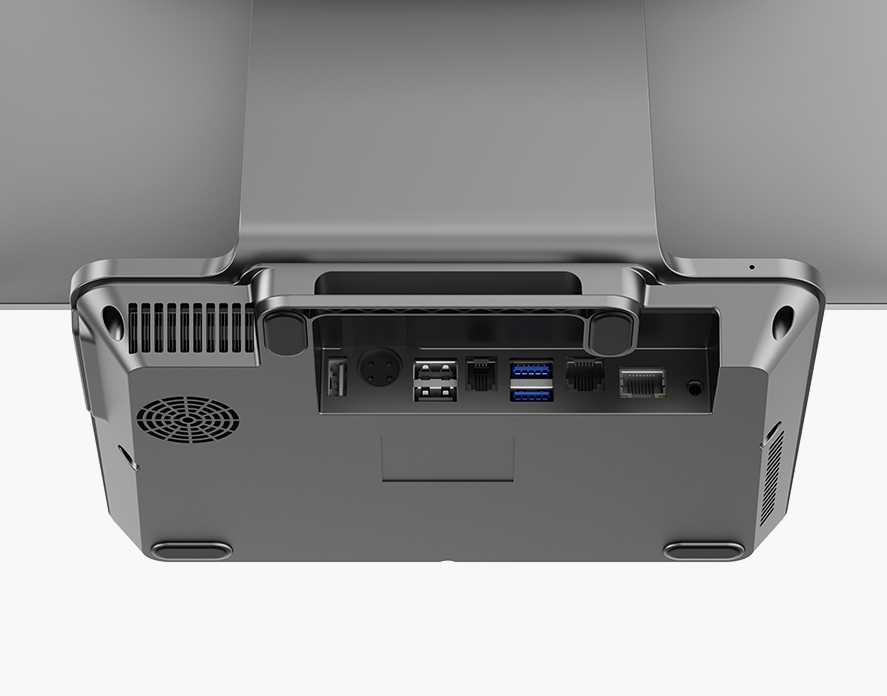

Rich I/O That Connects Every Peripheral Your Operation Runs On

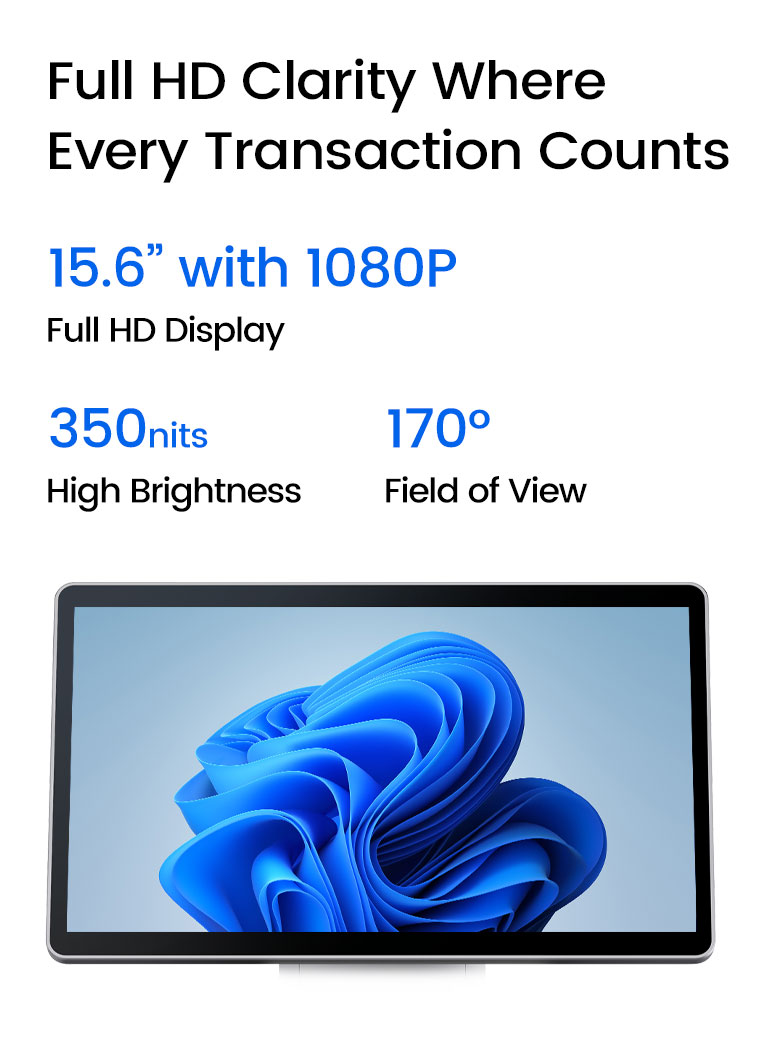

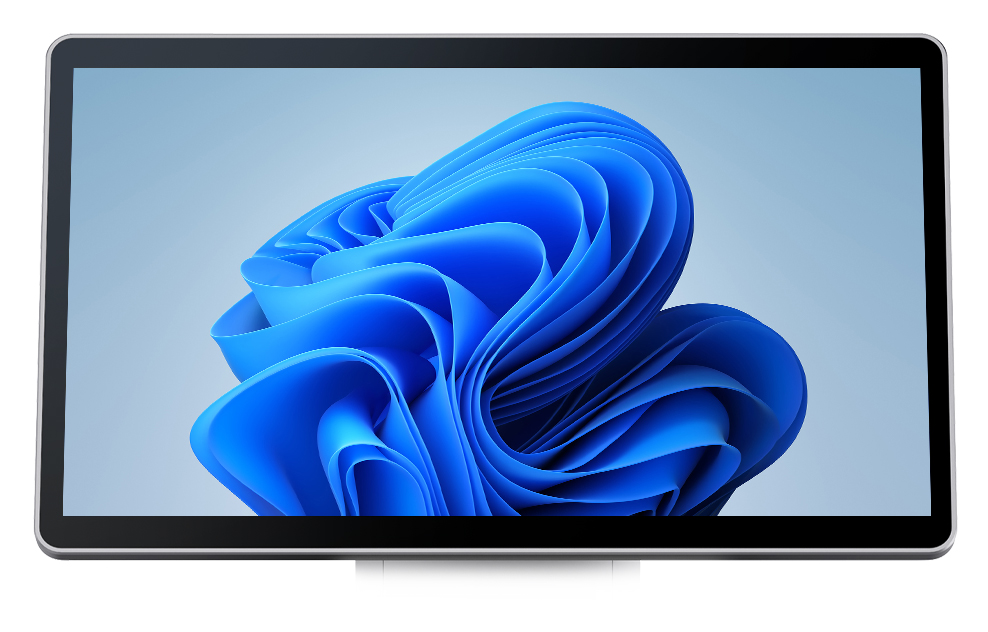

Full HD Clarity Where Every Transaction Counts
15.6″ with 1080P
Full HD Display
350nits
High Brightness
170°
Field of View

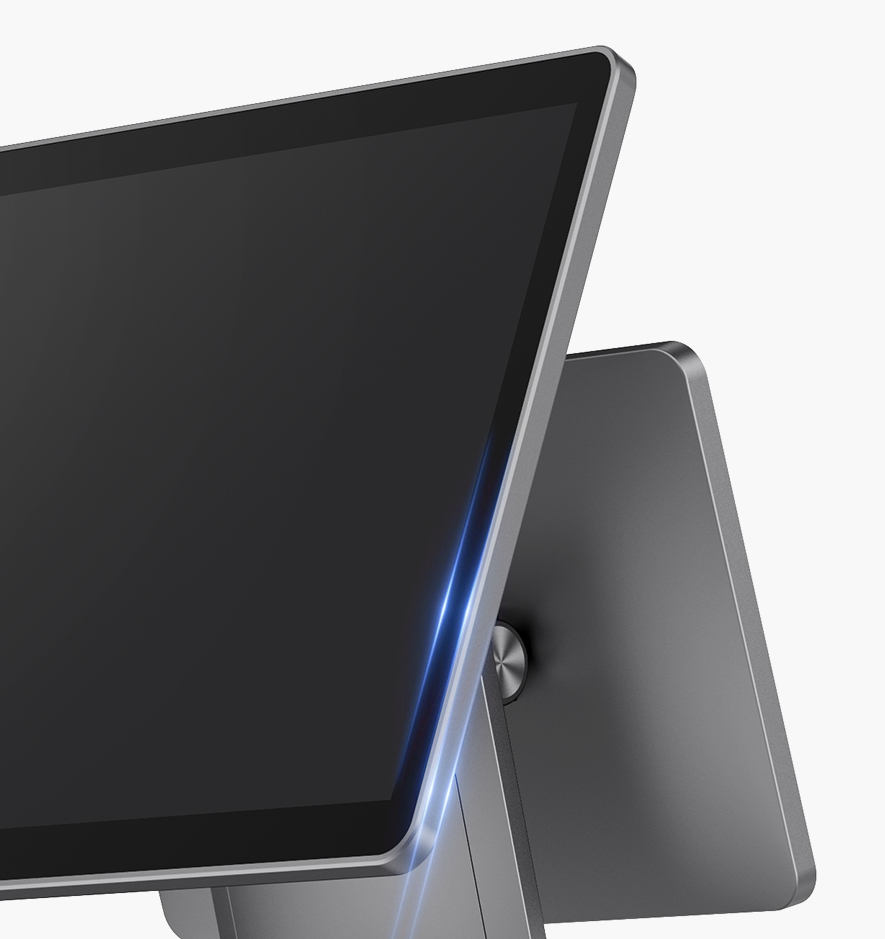

A Windows POS Terminal Designed Thin, and Built for the Modern Counter

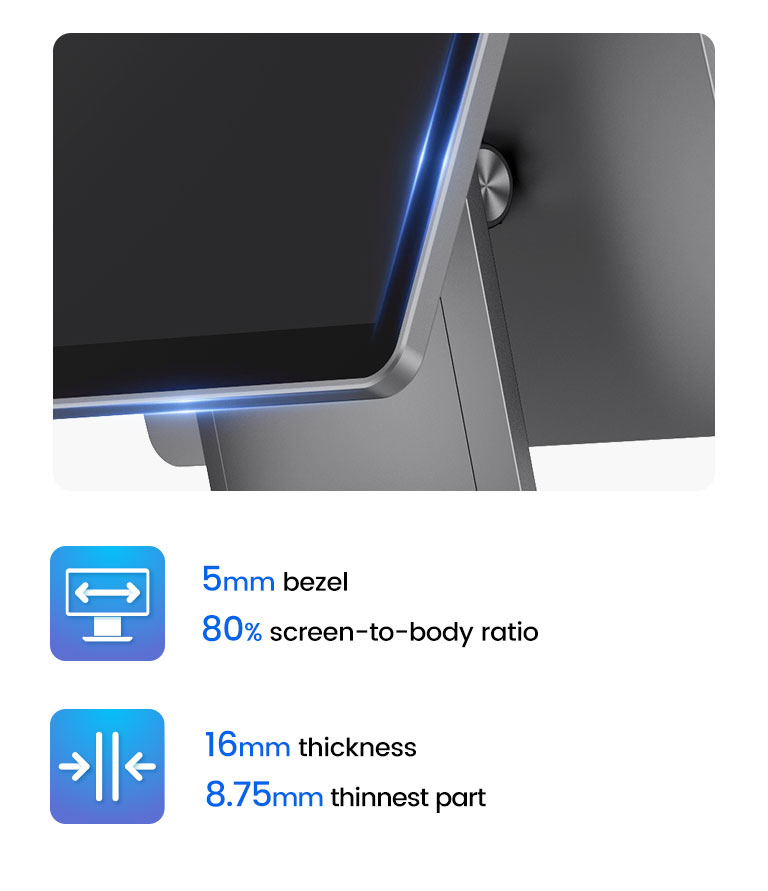

5mm Bezel
80% Screen-to-Body Ratio
80% Screen-to-Body Ratio
16mm Thickness
8.75mm Thinnest Part
8.75mm Thinnest Part
A Windows POS Terminal That Redefines What the Counter Looks Like.

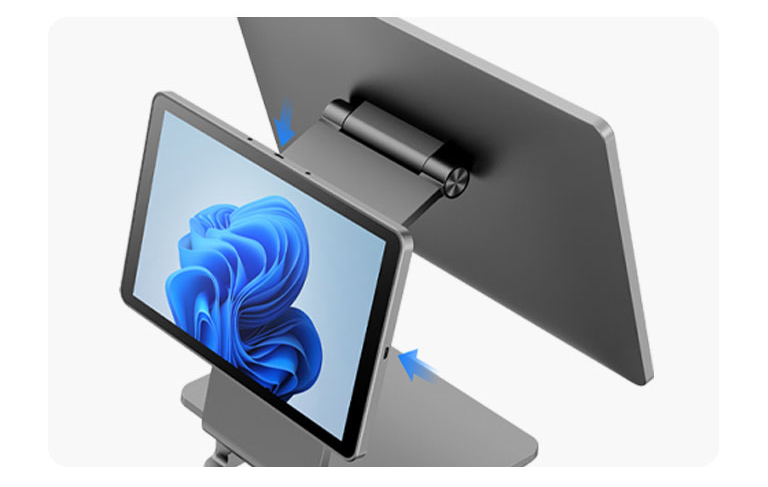

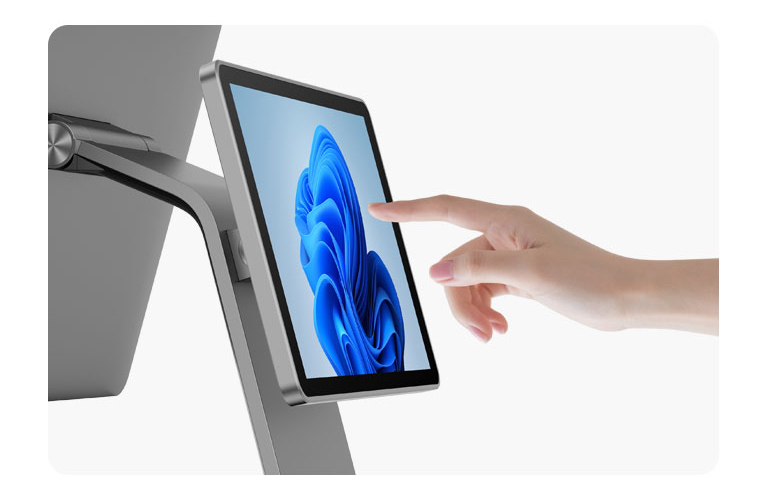

A Touch-Enabled Customer Display to Extend the Interaction
Two Reserved USB Ports on Customer Display
Connects every peripheral your business depends on.
A Touch-Enabled Customer Display to Extend the Interaction
Two Reserved USB Ports on Customer Display
Configure to Your Exact Requirements
The C9W is designed as a configurable touch screen billing machine — select the modules and features that match your workflow and brand.

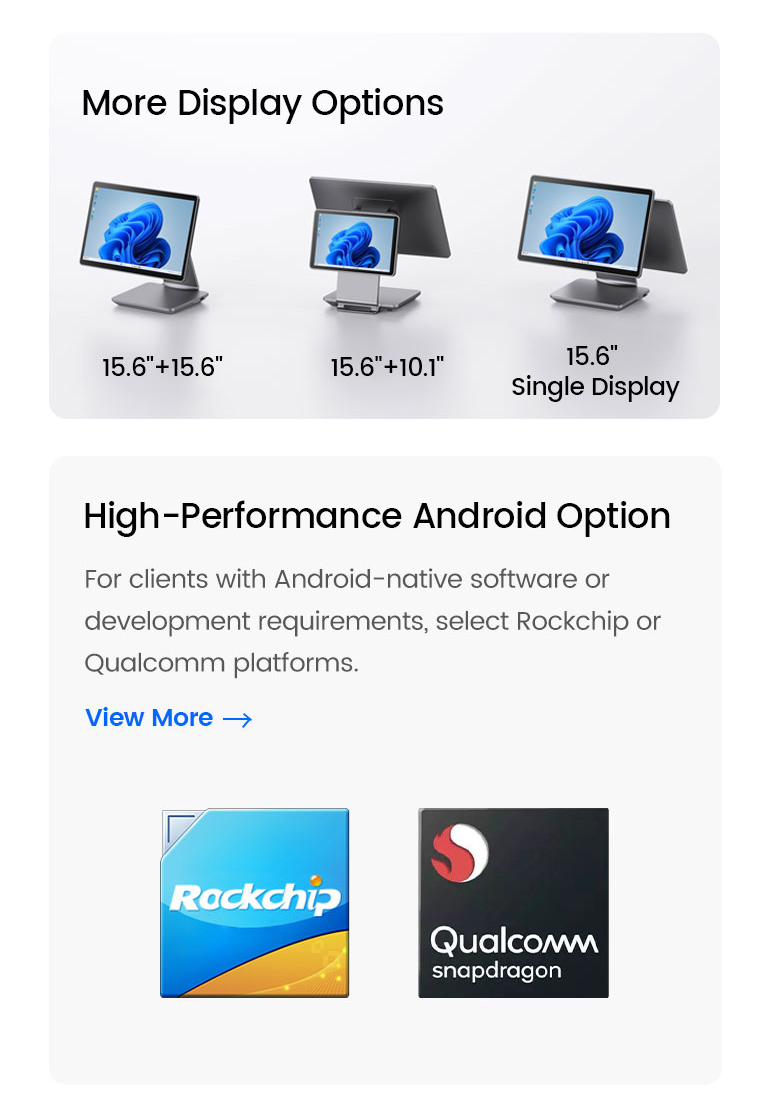

More Display Options
High-Performance Android Option

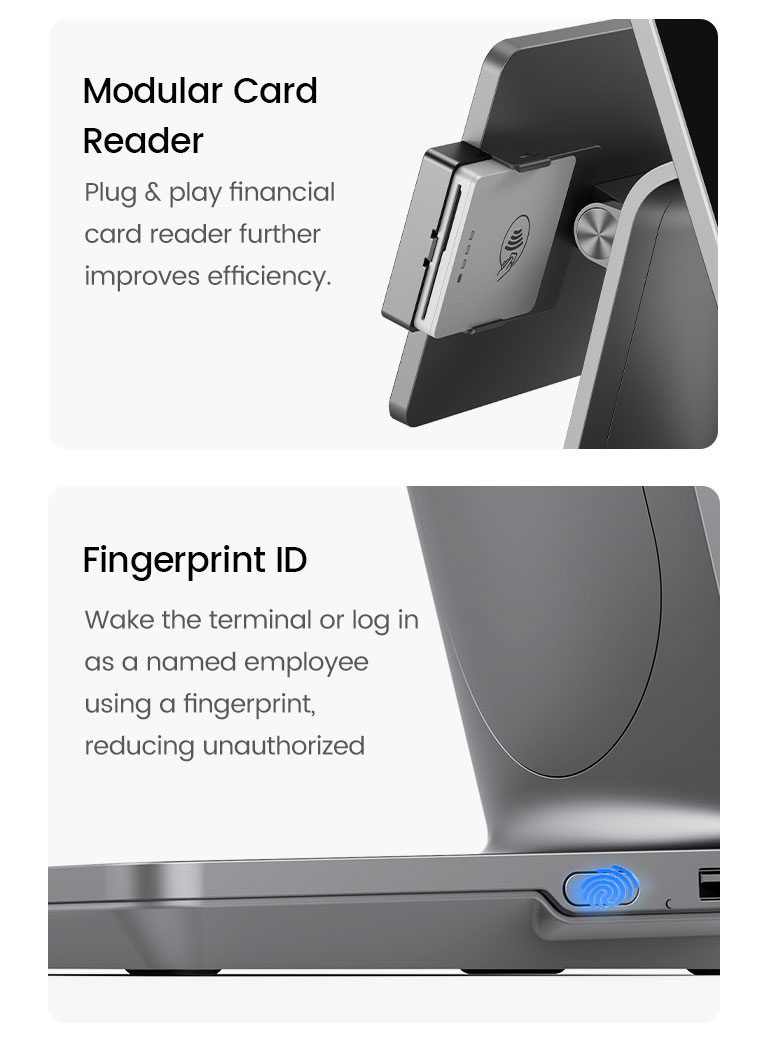

Modular Card Reader
Fingerprint ID

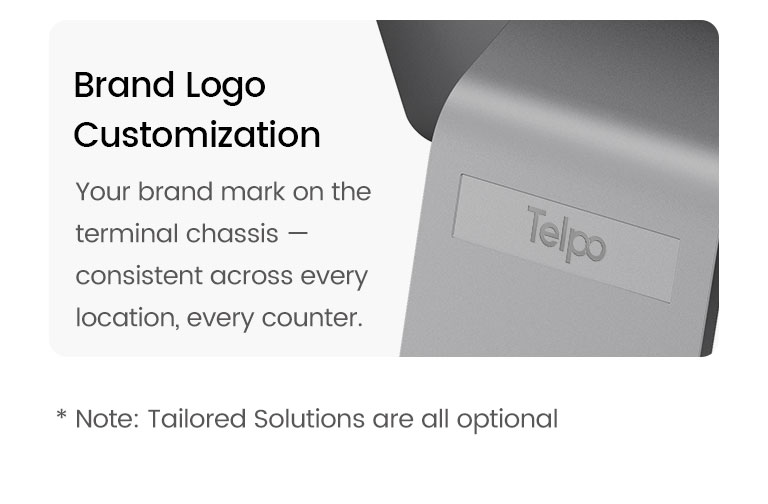

Brand Logo Customization
Your brand mark on the terminal chassis — consistent across every location, every counter.
Tailored Solution &
Modular Design
Telpo Platform Services
Improve your business management efficiency and profits with POS Telpo C9
Telpo MDMAn efficient platform for terminal management
Telpo OSThe operation system tailored for Telpo users
Telpo APP StoreProvide mass functional apps
Telpo SDKEfficient cross-platform development solution
Technical Specifications
OS
Win 11 IOT LTSC Enterprise
Processor
Intel® i3-1215U, Hexa-Core, Up to 4.4 GHz Turbo
Intel® i5-1334U, Ten-Core, Up to 4.6 GHz Turbo (Optioanl)
Memory
8GB DDR, 128GB ROM
4GB DDR, 128GB ROM(Optional)
8GB DDR, 256GB ROM(Optional)
Display
Main Display 15.6", 1920*1080, support touch, G+G
Customer Display: 10.1", 1280*800, support touch, G+G (Optional)
Customer Display: 15.6", 1920*1080, support touch, G+G (Optional)
Financial Card Reader (Optional)
NFC: ISO14443 Type A/B, Mifare (EMV Contactless L1, Paywave, Paypass certified)
IC Card: ISO7816
Install on 10.1" screen side
Contactless Card Reader (Optional)
ISO14443 Type A/B, Mifare (Under the 10.1" second display)
Fingerprint Button (Optional)
Support
Communications
Wi-Fi / Bluetooth 5.0/ Ethernet
Peripheral Ports
6 USB-A(4*USB 2.0+2*USB 3.0)
1 RJ11(RS232)
1 RJ12
1 RJ45
1 DC Port
2 Micro USB(10.1 Screen Extended Port) (Optional)
Audio
1 Speaker 3W
2 Microphone (Optional)
Power Supply
24V/2.75A
Others
1 Power Key
MDM (Optional)
Mobile Device Management
Environmental
Operating temperature: -10℃ ~ 45℃
Storage temperature: -25℃ ~ 60℃
Certification
CE, FCC, BIS
