Introduction Video
Everything at a Glance

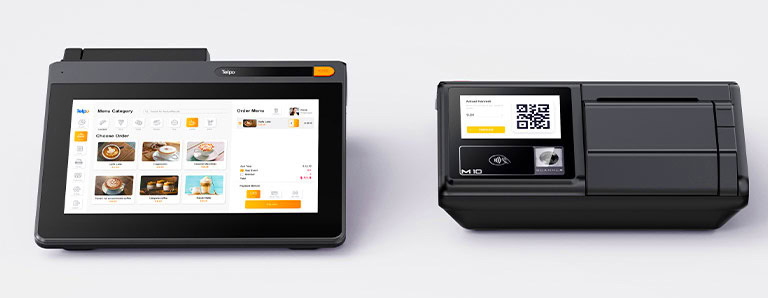

10″+4″ dual screen. Dual display modes, double efficiency
POS Terminal All in One, Everything at a Glance
10″ + 4″ dual screen. Dual display modes, double efficiency. Small cash register
IPS touchscreen,
wider viewing angles
400 nit brightness,
better visibility in semi-outdoor
Accurate color reproduction,
enhanced visual experience
200%
With a 2x improvement in overall performance and image processing, you can expect processing speeds that exceed your expectations.
BOOST
200%
With a 2x improvement in overall performance and image processing, you can expect to processing
speeds that exceed your expectations.
BOOST
Processor
Qualcomm Octa-Core
3 times faster than average POS
Telpo OS
(Based on Android 13)
15% faster app start up
Memory
4GB RAM, 64GB ROM
Touch Screen Cash Till with Barcode Reader and NFC
Choose Your Preferred Method to Pay
QR Code Payment
NFC Payment
Support SoftPOS
Efficient Printing
M10 EPOS till devices with high-speed thermal printers ensure fast receipt printing, reducing wait times.
80mm
Seiko Printer
200mm/s
Max Printing
Auto
Cutter
50km
Print Head Life
Integrate Fiscal Device and POS in One
Flexible
Separate cabin for fiscal memory
Tamper-Proof
Whole machine lead seal
Multiple Ports to Unlock More Functions
Multiple Ports to Unlock More Functions
Customize to Perfectly Meet Specific Needs

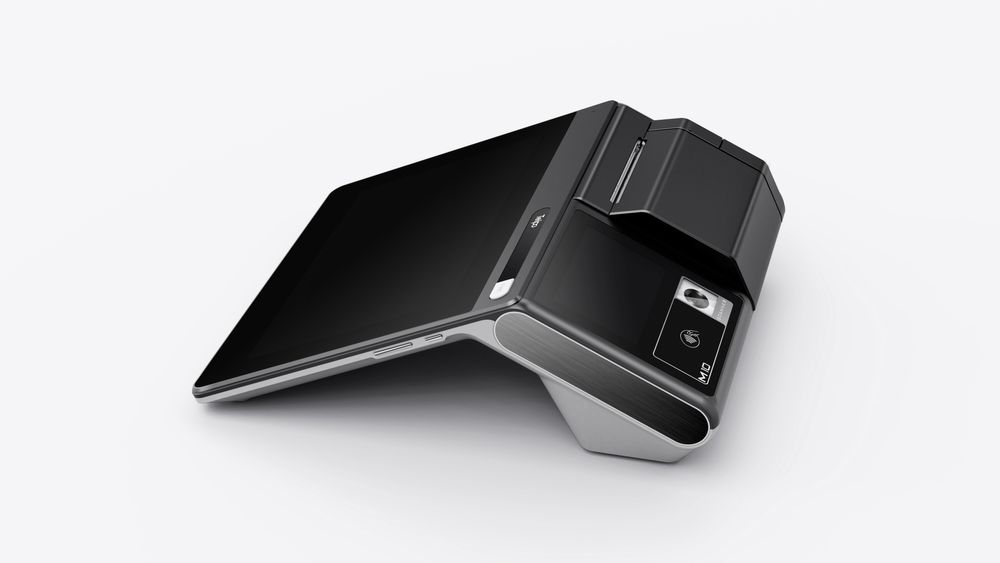

Material

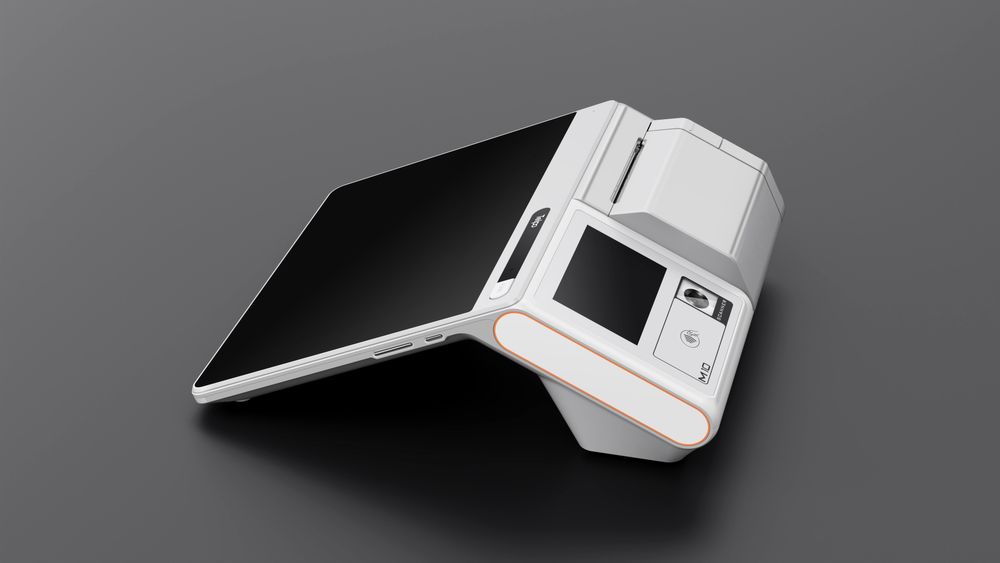

Color
LOGO
Customize to Perfectly Meet Specific Needs
Separate screen printing area for a shorter customization time
Technical Specifications
OS
Telpo OS
(Based on Android 13)
Processor
Octa-Core 2.0GHz
Memory
4GB RAM, 64GB ROM
Display
Main Display:
10", 1280*800
Main Display:
11", 1920*1200 (Optional)
Customer Display: 4", 800*480 (Optional)
Thermal Printer
Paper Width: 80mm, Φ80mm
Expansion
Support up to 128GB
Micro SD card
Indicator
1 Lights
Keypad
1 Power Key, 2 Volume Keys, 1 Functional Key
Contactless Card Reader
IS014443 Type A/B, Mifare
Camera
5M Pixel, Auto Focus (Barcode Software Decoding)
SIM Slots
2 Nano SIMs
eSIMs (Optional)
SAM Slots
2 SAMs
Communications
LTE/ WCDMA/ GPRS/ Wi-Fi/ Bluetooth
GPS
Built-in
Peripheral Ports
1 Type-C, 4 USB, 1 RJ12 (1 x drawer port 24V), 1 RJ11 (RS232), 1 RJ45
Audio
1W Digital Audio Speaker, Microphone
Power Supply
24V/2.5A
Dimensions (mm)
309 (L)*199 (W)*108(H)
Environmental
Operating Temperature:
-5 C ~45 C
Storage Temperature:
-25C 60 C
Certification
CE, FCC, RoHS, GMS
