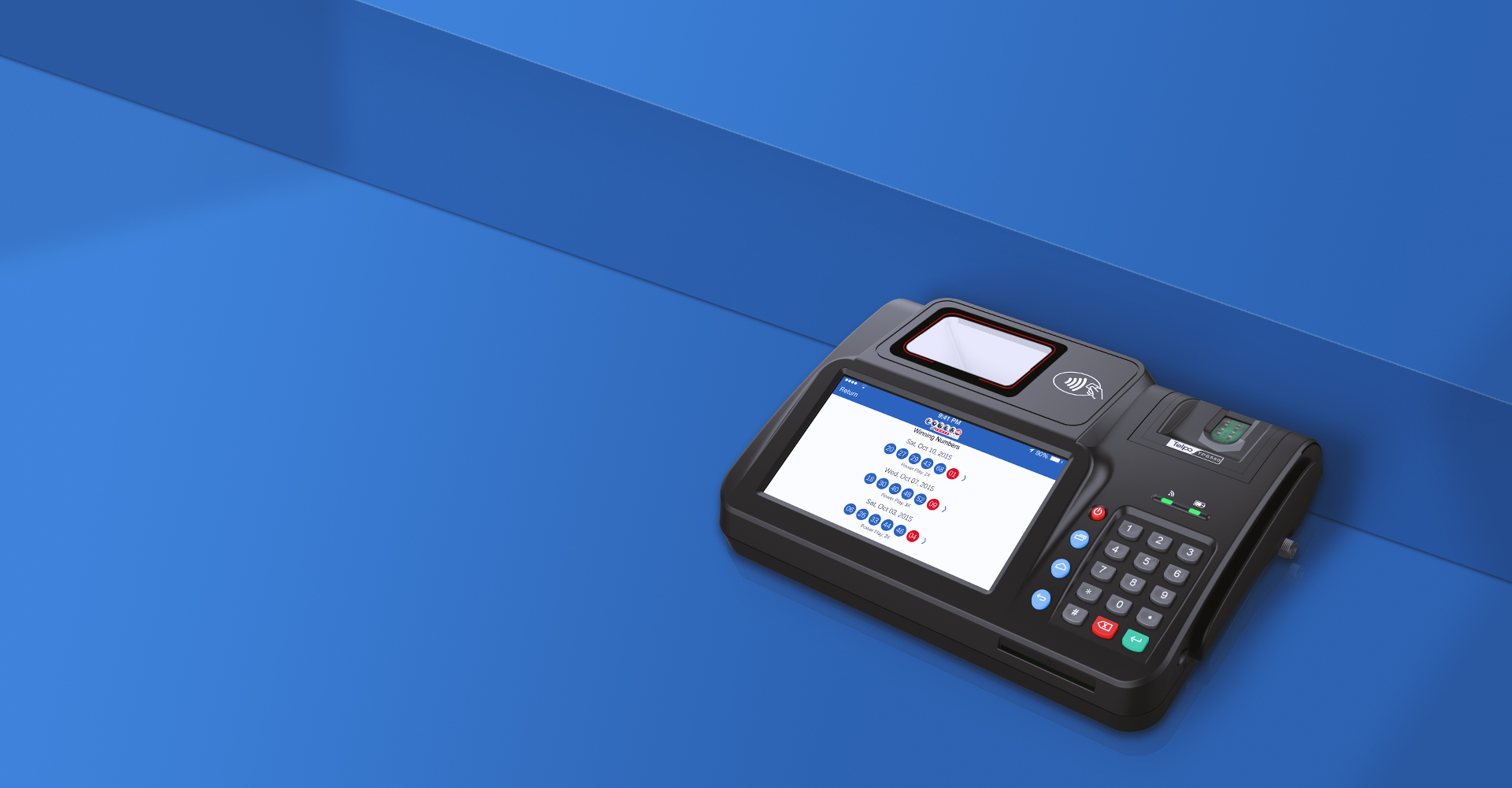

Desktop Barcode Scanner POS Machine with keypad antenna

TPS550

Desktop Barcode Scanner POS Machine with keypad antenna

All-in-one Desktop POS with Keypad Antenna


Breath-taking speed of TPS550 is from dual Core 1.5Ghz A9 Processor, free for all kinds of application.


All-in-one Desktop POS with Keypad Antenna


A 7.0-inch capacitive screen, a new visual, easy to touch.


Smart QR-code Reader POS


All-in-one Desktop POS with Keypad Antenna


Dual SIM card standby, applicable to any network environment, ensured smooth business.


Desktop Barcode Scanner POS Machine with keypad antenna



All-in-one Desktop POS with Keypad Antenna


TPS550 integrated the 5MPX fixed focus camera, which can read the 1D/ 2D barcode precisely. This can be applied to intelligent registration of visitor information, and invoices, movie tickets and other bill verification. Besides, TPS550 can built a camera in front of the machine, which can used for verifying the photos.




All-in-one Desktop POS with Keypad Antenna

Smart QR-code Reader POS

All-in-one Desktop POS with Keypad Antenna


TPS550 is also a master of reading cards.It can support reading the magnetic card, ic card, NFC, etc.


All-in-one Desktop POS with Keypad Antenna

TPS550 is a good high-speed printer.


Smart QR-code Reader POS


All-in-one Desktop POS with Keypad Antenna

TPS550 supports accurate fingerprint reading module. We can build in the fingerprint reader as you need.



Applications

All-in-one Desktop POS with Keypad Antenna


Telpo Android POS TPS550 is applicable to small and medium-sized enterprises, public institutions, hospitals, schools, communities, Banks, electric power, public inspection laws and other places that need to register personnel identity information.


Smart QR-code Reader POS


Specification

All-in-one Desktop POS with Keypad Antenna


OSAndroid 4.4 or above
ProcessorDual-Core 1.2GHz or above
Memory1GB DDR, 8GB eMMC, Ext. TF card slot
Display7-inch, 800*480 or above
Keypad13 alphanumeric keys, 6 function keys
LED Lights2
Thermal PrinterPaper width: 58mm, Φ50mm
Magnetic Card Reader (Optional)Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812
Smart Card Reader (Optional)ISO7816
Contactless Card Reader (Optional)ISO14443 Type A/B, Mifare, ISO18092 compliant
Fingerprint Scanner (Optional)Support
Camera5M Pixel, fixed focus (Barcode soft decoding)
 Front camera: 5M Pixel (Optional)
SAM Slots   (Optional)2 SAM Slots
SIM Slots1 SIM
2 SIMs (Optional)
CommunicationsWCDMA/GPRS/Ethernet/WiFi/Bluetooth
LTE/GPS (Optional)
Peripheral Ports2 USB Host, 1 mini USB ,1 RJ45
1 RJ11, 1 PS2, 1DB9 (Optional)
AudioDigital Audio Speaker
Power Supply12V/2A
Battery

7.4V/2500mAh, Li-ion

7.4V/5000mAh, Li-ion (Optional)

7.4V/10000mAh, Li-ion (Optional)

7.4V/20000mAH, Li-ion (Optional)

Dimensions (mm)290 (L)*219 (W)*85 (H)
EnvironmentalOperating temperature: -5℃ ~ 45℃
Storage temperature: -25℃ ~ 60℃
MDM (Optional)Mobile Device Management
CertificationCE, CCC
